Astm A234

CARBON STEEL

Unisteel and Engineering is Manufacturer, Stockists and Supplier of best registration top notch assortment of WPB Carbon Steel Pipe Fittings and variegated pipe fittings Flanges which can be produced underneath the master direction of our constant workforce.We're outstandingly talented association in WPB Carbon Steel Pipe Fittings and other pipe fittings Flanges. Our WPB Carbon Steel Pipe Fittings and variegated Fitting stock are manufactured the utilization of excellent reticulum and experience a thorough astounding test at all levels of creation to make unrepealable high caliber. Planned in consistence with worldwide quality necessities, those WPB Carbon Steel Pipe Fittings are erosion obstruction, durable and sturdy.We in like manner supply WPB Carbon Steel Pipe Fittings and other pipe fittings Flanges in altered size.

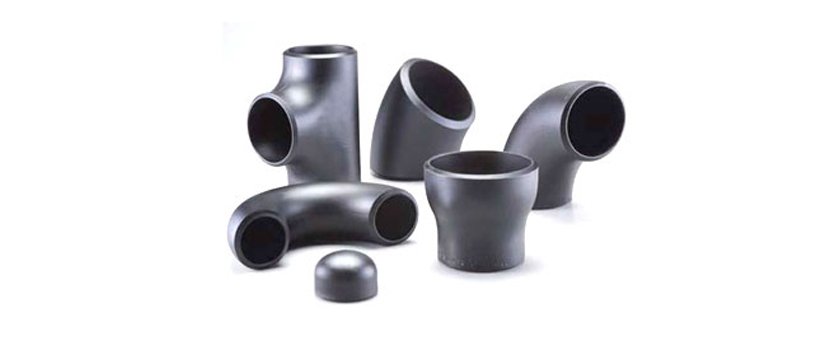

We are providing an extensive scope of ASTM A234 Gr WPB-W Carbon Steel ERW Buttweld Pipe Fittings for the correct specialized answer. Metal Udyog make and fare wide decisions of ASTM A234 Gr WPB-W Carbon Steel ERW Buttweld Pipe Fittings, ASTM A106 Grade An/ASTM A106 Grade B/ASTM A106 Grade C at greatest all around enhanced cost as equivalent to purchaser prerequisites, we in addition can make ASTM A234 Gr WPB-W Carbon Steel ERW Buttweld Pipe Fittings in ASTM/ASME/ANSI reviews as with regards to our buyer spending plan, we minds the acknowledgment giving ASTM A234 Gr WPB-W Carbon Steel ERW Buttweld Pipe Fittings at most modest in metallic businesses for all intents and purposes the globe.

SPECIFICATIONS of ASTM A234 :

ASTM A234 Gr WPB Pipe Fittings size	CS ASTM A234 Seamless Butt Weld Fittings: 1/2" - 10" CS ASTM A234 gr WPB Welded Butt Weld Fittings: 1/2" - 48"
A234 Grade WPB Pipe Fittings Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Carbon Steel sch 40 A234 Fittings Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
CS ASTM A234 Pipe fittings Types	CS ASTM A234 gr WPB Butt Weld Fitting CS A234 Seamless Fittings Carbon Steel ASTM A234 WPB ERW Fittings ASTM A234 Gr WPB Welded Fittings A234 Grade WPB Fabricated Pipe Fittings CS ASTM A234 gr WPB Bevel Ends Pipe Fittings CS ASTM A234 gr WPB Forged Fittings
ASTM A234 WPB Carbon Steel Fittings Type	DN15-DN1200
Carbon Steel A234 WPB Buttweld Fitting Connection	Welding
Size Range	½" NB to 120" NB CS ASTM A234 Seamless Butt Weld Fittings: 1/2" - 24" CS ASTM A234 gr WPB Welded Butt Weld Fittings: 1/2" - 120" CS ASTM A234 Two Joint / Two Halve Fittings 6” to 48”
SA234 Grade WPB fittings	Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D . Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
CS ASTM A234 Fittings Manufacturing process	Push, Press, Forge, Cast, etc.
Surface treatment	Sand blasting, Sand Rolling, Sand Blasting
ASTM A234 WPB Carbon Steel Buttweld Pipe Fittings Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
CS ASTM A234 WPB Pipe Fittings Origin & Mills	Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for Grade WPB Pipe Fittings	Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids.
Specialized manufacturer of A234 WPB Material	A234 Gr WPB Seamless fittings ASTM A234 WPB Sch 40 fittings A234 WPB Weld Fittings ASTM A234 WPB Flange A234 WPB Forged Fittings
Application & uses of Industrial CS A234 WPB Fittings	Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc ASTM A234 WPB Sch 10 fittings are an economical alternative for lower-pressure applications. ASTM A234 WPB Sch 40 fittings have a thicker wall for higher-pressure applications.

TYPE of ASTM A106 GR. B CARBON STEEL PIPES :

Carbon steel Pipes
ASME SA106 Carbon steel Pipes
ASTM A106 Carbon steel Pipes
ANSI B1.20. Carbon steel Pipes
ANSI B36.10M Carbon steel Pipes
Carbon steel 2B Mirror Finish Pipes

Carbon steel IBR Pipes
ASME SA106 Carbon steel IBR Pipes
ASTM A106 Carbon steel IBR Pipes
ANSI B1.20. Carbon steel IBR Pipes
ANSI B36.10M Carbon steel IBR Pipes
Carbon steel 2B Mirror Finish IBR Pipes

Carbon steel Fabricated Pipes
ASME SA106 Carbon steel Fabricated Pipes
ASTM A106 Carbon steel Fabricated Pipes
ANSI B1.20. Carbon steel Fabricated Pipes
ANSI B36.10M Carbon steel Fabricated Pipes
Carbon steel 2B Mirror Finish Fabricated Pipes

Carbon steel Welded Pipes
ASME SA106 Carbon steel Welded Pipes
ASTM A106 Carbon steel Welded Pipes
ANSI B1.20. Carbon steel Welded Pipes
ANSI B36.10M Carbon steel Welded Pipes
Carbon steel 2B Mirror Finish Welded Pipes

Carbon steel Tubes
ASME SA106 Carbon steel Tubes
ASTM A106 Carbon steel Tubes
ANSI B1.20. Carbon steel Tubes
ANSI B36.10M Carbon steel Tubes
Carbon steel 2B Mirror Finish Tubes

Carbon steel Seamless Tubes
ASME SA106 Carbon steel Seamless Tubes
ASTM A106 Carbon steel Seamless Tubes
ANSI B1.20. Carbon steel Seamless Tubes
ANSI B36.10M Carbon steel Seamless Tubes
Carbon steel 2B Mirror Finish Seamless Tubes

Carbon steel ERW Boiler Tubes
ASME SA106 Carbon steel ERW Boiler Tubes
ASTM A106 Carbon steel ERW Boiler Tubes
ANSI B1.20. Carbon steel ERW Boiler Tubes
ANSI B36.10M Carbon steel ERW Boiler Tubes
Carbon steel 2B Mirror Finish ERW Boiler Tubes

Carbon steel CDW Boiler Tubes
ASME SA106 Carbon steel CDW Boiler Tubes
ASTM A106 Carbon steel CDW Boiler Tubes
ANSI B1.20. Carbon steel CDW Boiler Tubes
ANSI B36.10M Carbon steel CDW Boiler Tubes
Carbon steel 2B Mirror Finish CDW Boiler Tubes

Carbon steel Air Heater Tubes
ASME SA106 Carbon steel Air Heater Tubes
ASTM A106 Carbon steel Air Heater Tubes
ANSI B1.20. Carbon steel Air Heater Tubes
ANSI B36.10M Carbon steel Air Heater Tubes
Carbon steel 2B Mirror Finish Air Heater Tubes

Dimensions of ASTM A106 GR. B CARBON STEEL PIPES :

NPS [DN Designator]	Over		Under
NPS [DN Designator]	in.	mm	in.	mm
1/8 to 1-1/2 [6 to 40], incl	1/64 (0.015)	0.4	1/64 (0.015)	0.4
Over 1-1/2 to 4 [40 to 100], incl	1/32 (0.031)	0.8	1/32 (0.031)	0.8
Over 4 to 8 [100 to 200], incl	1/16 (0.062)	1.6	1/32 (0.031)	0.8
Over 8 to 18 [200 to 450], incl	3/32 (0.093)	2.4	1/32 (0.031)	0.8
Over 18 to 26 [450 to 650], incl	1/8 (0.125)	3.2	1/32 (0.031)	0.8
Over 26 to 34 [650 to 859], incl	5/32 (0.156)	4.0	1/32 (0.031)	0.8
Over 34 to 48 [850 to 1200], incl	3/16 (0.187)	4.8	1/32 (0.031)	0.8

Size range of ASTM A106 GR. B Carbon Steel Pipe :

NB	Size	OD	40S	5S	10S	S10	S20	S40	S60	XS/80S	S80	S100	S120	S140	S160	XXS
NB	Size	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
	1/8”	10.29			1.2			1.73			2.41
	1/4”	13.72			1.7			2.24			3.02
	3/8”	17.15			1.7			2.31			3.2
15	1/2”	21.34	2.8	1.7	2.1			2.77		3.73	3.73				4.78	7.47
20	3/4”	26.67	2.9	1.7	2.1			2.87		3.91	3.91				5.56	7.82
25	1”	33.4	3.4	1.7	2.8			3.38		4.55	4.55				6.35	9.09
32	1 1/4”	42.16	3.6	1.7	2.8			3.56		4.85	4.85				6.35	9.7
40	1 1/2”	48.26	3.7	1.7	2.8			3.68		5.08	5.08				7.14	10.2
50	2”	60.33	3.9	1.7	2.8			3.91		5.54	5.54				9.74	11.1
65	2 1/2”	73.03	5.2	2.1	3.1			5.16		7.01	7.01				9.53	14
80	3”	88.9	5.5	2.1	3.1			5.49		7.62	7.62				11.1	15.2
90	3 1/2”	101.6	5.7	2.1	3.1			5.74		8.08	8.08
100	4”	114.3	6	2.1	3.1			6.02		8.56	8.56		11.1		13.5	17.1
125	5”	141.3	6.6	2.8	3.4			6.55		9.53	9.53		12.7		15.9	19.1
150	6”	168.3	7.1	2.8	3.4			7.11		10.97	11		14.3		18.3	22
200	8”	219.1	8.2	2.8	3.8		6.4	8.18	10.3	12.7	12.7	15.1	19.3	20.6	23	22.2
250	10”	273.1	9.3	3.4	4.2		6.4	9.27	12.7	12.7	15.1	19.3	21.4	25.4	28.6	25.4
300	12”	323.9	9.5	4	4.6		6.4	10.3	14.3	12.7	17.5	21.4	25.4	28.6	33.3	25.4
350	14”	355.6	9.5	4	4.8	6.4	7.9	11.1	15.1	12.7	19.1	23.8	27.8	31.8	35.7
400	16”	406.4	9.5	4.2	4.8	6.4	7.9	12.7	16.7	12.7	21.4	26.2	31	36.5	40.5
450	18”	457.2	9.5	4.2	4.8	6.4	7.9	14.3	19.1	12.7	23.8	29.4	34.9	39.7	45.2
500	20”	508	9.5	4.8	5.5	6.4	9.5	15.1	20.6	12.7	26.2	32.5	38.1	44.5	50
550	22”	558.8	9.5	4.8	5.5	6.4	9.5		22.2	12.7	28.6	34.9	41.3	47.6	54
600	24”	609.6	9.5	5.5	6.4	6.4	9.5	17.5	24.6	12.7	31	38.9	46	52.4	59.5
650	26”	660.4	9.5			7.9	13			12.7
700	28”	711.2	9.5			7.9	13			12.7
750	30”	762	9.5	6.4	7.9	7.9	13			12.7
800	32”	812.8	9.5			7.9	13	17.5		12.7
850	34”	863.6	9.5			7.9	13	17.5		12.7
900	36”	914.4	9.5			7.9	13	19.1		12.7

A106 Grade B Seamless Pipe schedule chart & sizes

NB	Size	OD	40S	5S	10S	S10	S20	S40	S60	XS/80S	S80	S100	S120	S140	S160	XXS
NB	Size	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
	1/8”	10.29			1.2			1.73			2.41
	1/4”	13.72			1.7			2.24			3.02
	3/8”	17.15			1.7			2.31			3.2
15	1/2”	21.34	2.8	1.7	2.1			2.77		3.73	3.73				4.78	7.47
20	3/4”	26.67	2.9	1.7	2.1			2.87		3.91	3.91				5.56	7.82
25	1”	33.4	3.4	1.7	2.8			3.38		4.55	4.55				6.35	9.09
32	1 1/4”	42.16	3.6	1.7	2.8			3.56		4.85	4.85				6.35	9.7
40	1 1/2”	48.26	3.7	1.7	2.8			3.68		5.08	5.08				7.14	10.2
50	2”	60.33	3.9	1.7	2.8			3.91		5.54	5.54				9.74	11.1
65	2 1/2”	73.03	5.2	2.1	3.1			5.16		7.01	7.01				9.53	14
80	3”	88.9	5.5	2.1	3.1			5.49		7.62	7.62				11.1	15.2
90	3 1/2”	101.6	5.7	2.1	3.1			5.74		8.08	8.08
100	4”	114.3	6	2.1	3.1			6.02		8.56	8.56		11.1		13.5	17.1
125	5”	141.3	6.6	2.8	3.4			6.55		9.53	9.53		12.7		15.9	19.1
150	6”	168.3	7.1	2.8	3.4			7.11		10.97	11		14.3		18.3	22
200	8”	219.1	8.2	2.8	3.8		6.4	8.18	10.3	12.7	12.7	15.1	19.3	20.6	23	22.2
250	10”	273.1	9.3	3.4	4.2		6.4	9.27	12.7	12.7	15.1	19.3	21.4	25.4	28.6	25.4
300	12”	323.9	9.5	4	4.6		6.4	10.3	14.3	12.7	17.5	21.4	25.4	28.6	33.3	25.4
350	14”	355.6	9.5	4	4.8	6.4	7.9	11.1	15.1	12.7	19.1	23.8	27.8	31.8	35.7
400	16”	406.4	9.5	4.2	4.8	6.4	7.9	12.7	16.7	12.7	21.4	26.2	31	36.5	40.5
450	18”	457.2	9.5	4.2	4.8	6.4	7.9	14.3	19.1	12.7	23.8	29.4	34.9	39.7	45.2
500	20”	508	9.5	4.8	5.5	6.4	9.5	15.1	20.6	12.7	26.2	32.5	38.1	44.5	50
550	22”	558.8	9.5	4.8	5.5	6.4	9.5		22.2	12.7	28.6	34.9	41.3	47.6	54
600	24”	609.6	9.5	5.5	6.4	6.4	9.5	17.5	24.6	12.7	31	38.9	46	52.4	59.5
650	26”	660.4	9.5			7.9	13			12.7
700	28”	711.2	9.5			7.9	13			12.7
750	30”	762	9.5	6.4	7.9	7.9	13			12.7
800	32”	812.8	9.5			7.9	13	17.5		12.7
850	34”	863.6	9.5			7.9	13	17.5		12.7
900	36”	914.4	9.5			7.9	13	19.1		12.7

ASTM A106 Gr B Sch 40 Line Pipe pressure rating :

NPS	Outside Diameter	Schedule
(in)	(in)	10	20	30	STD	40	60	XS	80	100	120	140	160	XXS
1/4	0.54				7985	7985		10798	10798
3/8	0.675				6606	6606		9147	9147
1/2	0.84				6358	6358		8575	8575				10908	17150
3/4	1.05				5273	5273		7187	7187				10220	14373
1	1.315				4956	4956		6670	6670				9316	13340
1 1/4	1.66				4133	4133		5638	5638				7380	11276
1 1/2	1.9				3739	3739		5158	5158				7247	10316
2	2.375				3177	3177		4498	4498				7097	8995
2 1/2	2.875				3460	3460		4704	4704				6391	9408
3	3.5				3024	3024		4200	4200				6132	8400
3 1/2	4				2769	2769		3896	3896
4	4.5				2581	2581		3670	3670		4769		5782	7339
5	5.563				2273	2273		3303	3303		4404		5505	6606
6	6.625				2071	2071		3195	3195		4157		5318	6390
8	8.625		1420	1574	1829	1829	2307	2841	2841	3375	4085	4613	5147	4971
10	10.75		1140	1399	1664	1664	2279	2279	2708	3277	3847	4558	5128	4558
12	12.75		961	1268	1441	1560	2160	1922	2644	3244	3843	4324	5042	3843
14	14	875	1092	1313	1313	1533	2079	1750	2625	3283	3829	4375	4921
16	16	766	956	1148	1148	1531	2009	1531	2585	3157	3733	4404	4882
18	18	681	849	1192	1021	1530	2042	1361	2553	3147	3743	4252	4848
20	20	613	919	1225	919	1455	1989	1225	2526	3138	3675	4288	4824
22	22	557	835	1114	835		1949	1114	2506	3063	3619	4176	4733
24	24	510	766	1147	766	1405	1978	1021	2489	3126	3700	4210	4786
30	30	510	817	1021	613			817
32	32	478	766	957	574	1054
34	34	450	721	901	540	992
36	36	425	681	851	510	1021
42	42		583	729	438	875

Weight Chart OF ASTM A106 GR. B Carbon Steel PIPES / TUBE :

Size	Other Diameter	Pipe I.D.	WT	Standard to XXHY	Weight	Section Modulus	Schedule Pipe #	Gallon
1/2	0.84	0.622	0.109	STD	0.85	.0407	40	.0158
		0.546	0.147	XHY	1.09	.0478	80	.0122
		0.464	0.188		1.31	.0528	160	.0088
3/4	1.05	0.824	0.113	STD	1.13	.0705	40	.0277
		0.742	0.154	XHY	1.48	.0853	80	.0225
		0.612	0.219		1.95	.1006	160	.0153
1	1.315	1.049	0.133	STD	1.68	.1328	40	.0449
		0.957	0.179	XHY	2.17	.1606	80	.0374
		0.815	0.250		2.85	.1904	160	.0271
1 1/4	1.66	1.380	0.140	STD	2.27	.2346	40	.0777
		1.278	0.191	XHY	3.00	.2913	80	.0666
		1.160	0.250		3.77	.3421	160	.0549
1 1/2	1.90	1.610	0.145	STD	2.72	.3262	40	.1058
		1.500	0.200	XHY	3.63	.4118	80	.0918
		1.338	0.281		4.86	.5079	160	.0730
2	2.375	2.157	0.109		2.64	.4205	10	.1898
		2.067	0.154	STD	3.66	.5606	40	.1743
		1.939	0.218	XHY	5.03	.7309	80	.1534
		1.875	0.250		5.68	.8045		.1434
		1.813	0.281		6.29	.8666		.1344
		1.687	0.344		7.47	.9806	160	.1161
2 1/2	2.875	2.635	0.120		3.53	.6870	10	.2833
		2.469	0.203	STD.	5.80	1.0640	40	.2487
		2.443	0.216		6.14	1.1169		.2435
		2.375	0.250		7.02	1.2468		.2301
		2.323	0.276	XHY	7.67	1.3386	80	.2202
		2.125	0.375		10.02	1.6371	160	.1842
3	3.50	3.260	0.120		4.34	1.0411		.4336
		3.188	0.156		5.58	1.3122		.4147
		3.156	0.172		6.12	1.4265		.4064
		3.124	0.188		6.66	1.5342		.3984
		3.068	0.216	STD.	7.58	1.7241	40	.3840
		3.000	0.250		8.69	1.9372		.3672
		2.938	0.281		9.67	2.1207		.3521
		2.900	0.300	XHY	10.26	2.2253	80	.3431
		2.624	0.438		14.34	2.8774	160	.2811
3 1/2	4.0	3.760	0.120		4.98	1.3776	10	.5768
		3.548	0.226	STD.	9.12	2.3939	140	.5136
		3.500	0.250		10.02	2.6001		.4998
		3.438	0.281		11.17	2.8562		.4821
		3.364	0.318	XHY	12.52	3.1400	80	.4617
4	4.5	4.260	0.120		5.62	1.7612	10	.7404
		4.188	0.156		7.24	2.2354		.7156
		4.124	0.188		8.67	2.6296		.6942
		4.094	0.203		9.32	2.8173		.6838
		4.062	0.219		10.02	3.0184		.6725
		4.026	0.237	STD.	10.80	3.2145	40	.6613
		4.000	0.250		11.36	3.3611		.6528
		3.938	0.281		12.67	3.7021	60	.6326
		3.876	0.312		13.97	4.0273		.6126
		3.826	0.337	XHY	15.00	4.2713	80	.5972
		3.624	0.438		19.02	5.1790	120	.5361
		3.438	0.531		22.53	5.8997	160	.4822
5	5.563	5.187	0.188		10.80	4.1161		1.0979
		5.125	0.219		12.51	4.7279		1.0716
		5.047	0.258	STD.	14.63	5.4500	40	1.0391
		5.001	0.281		15.87	5.8644		1.0204
		4.939	0.312		17.51	6.4074		.99647
		4.875	0.344		19.19	6.9358		.9696
		4.813	0.375	XHY	20.80	7.4300	80	.9449
		4.563	0.500		27.06	9.2534	120	.8495
		4.313	0.625		32.99	10.7976	160	.7590
6	6.625	6.407	0.109		7.59	3.5769	5	1.6748
		6.357	0.134		9.30	4.3475	10	1.6488
		6.313	0.156		10.79	5.0107		1.6260
		6.249	0.188		12.94	5.9351		1.5937
		6.219	0.203		13.94	6.3804		1.5780
		6.187	0.219		15.00	6.8261		1.5620
		6.125	0.250		17.04	7.6905		1.5306
		6.065	0.280	STD.	18.99	8.4958	40	1.5008
		6.001	0.312		21.06	9.3416		1.4688
		5.937	0.344		23.10	10.111		1.4391
		5.875	0.375		25.05	10.893		1.4082
		5.761	0.432	XHY	28.60	12.224	80	1.3541
		5.625	0.500		32.74	13.711		1.2909
		5.501	0.562		36.43	14.9806	120	1.2346
		5.375	0.625		40.09	16.1821		1.1787
		5.187	0.719		45.39	17.8243	160	1.0977
		4.897	0.864	XXHY	53.21	20.025		.9784
		4.625	1.000		60.13	21.7719		.8727
		4.375	1.125		66.14	23.1237		.7809

Equivalent Grades of ASTM A234 :

Pipe	Fittings	Flanges	Valves	Bolts & Nuts
A106 Gr A	A234 Gr WPA	A105	A216 Gr WCB	A193 Gr B7 A194 Gr 2H
A106 Gr B	A234 Gr WPB	A105	A216 Gr WCB
A106 Gr C	A234 Gr WPC	A105	A216 Gr WCB

CHEMICAL COMPOSITION (%) OF ASTM A234/A234M FITTINGS :

Grade	Type	Chemical Composition (%)
Grade	Type	C	Si	S	P	Mn	Cr	Ni	Mo	Other	ób	ós	δ5
WPB	0.3	0.1min	0.058	0.05	0.29-1.06	0.4	0.4	0.15	V:0.06;Nb:0.02	415-585	240	22	197
WPC	0.35	0.1min	0.058	0.05	0.29-1.06	0.4	0.4	0.15	V:0.06;Nb:0.02	485-655	275	22	197
WP1	0.28	0.1-0.5	0.045	0.045	0.3-0.9			0.44-0.65		380-550	205	22	197
WP12 CL1	0.05-0.2	0.6		0.045	0.3-0.8	0.8-1.25		0.44-0.65		415-585	220	22	197
WP12 CL2	0.05-0.2	0.6	0.045	0.045	0.3-0.8	0.8-1.25		0.44-0.65		485-655	275	22	197
WP11 CL1	0.05-0.15	0.5-1	0.03	0.03	0.3-0.6	1-1.5		0.44-0.65		415-585	205	22	197
WP11 CL2	0.05-0.2	0.5-1	0.04	0.04	0.3-0.8	1-1.5		0.44-0.65		485-655	275	22	197
WP11 CL3	0.05-0.2	0.5-1	0.04	0.04	0.3-0.8	1-1.5		0.44-0.65		520-690	310	22	197
WP22 CL1	0.05-0.15	0.5	0.04	0.04	0.3-0.6	1.9-2.6		0.87-1.13		415-585	205	22	197
WP22 CL3	0.05-0.15	0.5	0.04	0.04	0.3-0.6	1.9-2.6		0.87-1.13		520-690	310	22	197
WP5 CL1	0.15	0.5	0.03	0.04	0.3-0.6	4-6		0.44-0.65		415-585	205	22	217
WP5 CL3	0.15	0.5	0.03	0.04	0.3-0.6	4-6		0.44-0.65		520-690	310	22	217
WP9 CL1	0.15	1	0.03	0.03	0.3-0.6	8-10		0.9-1.1		415-585	205	22	217
WP9 CL3	0.15	1	0.03	0.03	0.3-0.6	8-10		0.9-1.1		520-690	310	22	217
WPR	0.2		0.05	0.045	0.4-1.06		1.6-2.24			435-605	315	22/28	217
WP91	0.08-0.12	0.2-0.5	0.01	0.02	0.3-0.6	8-9.5	0.4	0.85-1.05	See sdandard	585-760	415	20	248
WP911	0.09-0.13	0.1-0.5	0.01	0.02	0.3-0.6	8.5-10.5	0.4	0.9-1.1	See sdandard	620-840	440	20	248

Mechanical Properties of ASTM A234 :

Tensile Requirements	WPB	WPC, WP11CL2	WP11CL1	WP11CL3
Tensile Strength, min, ksi[MPa]	60-85	70-95	60-85	75-100
(0.2% offset or 0.5% extension-under-load)	[415-585]	[485-655]	[415-585]	[520-690]
Yield Strength, min, ksi[MPa]	32	40	30	45
[240]	[275]	[205]	[310]

Carbon Steel A106 Seamless Pipes Price list (As per demand and manufacturer):

Size"	MSL Make	ISMT make	JSL Make
1/2"	1,323.53	1,316.18	1,330.88
3/4"	1,102.94	1,095.59	1,110.29
1"	955.88	948.53	963.24
1.25"	911.76	904.41	919.12
1.5"	808.82	801.47	816.18
Price USD/Ton All prices are applicable for SCH 40, SCH 60, SCH 80 & SCH XS

ASTM A106 Pipe price list :

Standard：API 5L,ASME B36.10M
DN		OD	SCH40(6m）			SCH80(6m）
			W.T	WEIGHT/METER	unit price	W.T	WEIGHT/METER	Unit price
			（mm)	（kg)	（USD/TON）	（mm)	（kg)	（USD/TON）
DN6	1/4"	13.7	2.24	3.80	$1008.61	3.02	4.77	$1008.61
DN10	3/8"	17.1	2.31	5.06	$900.40	3.2	6.58	$900.40
DN15	1/2"	21.3	2.77	7.59	$720.32	3.73	9.70	$720.32
DN20	3/4"	26.7	2.87	10.12	$698.78	3.91	13.18	$698.78
DN25	1"	33.4	3.38	15.01	$649.53	4.55	19.42	$649.53
DN32	1-1/4"	42.2	3.56	20.35	$649.63	4.85	26.80	$649.63
DN40	1-1/2"	48.3	3.68	24.30	$636.36	5.08	32.49	$636.36
DN50	2"	60.3	3.91	32.62	$636.72	5.54	44.89	$636.72
DN65	2-1/2"	73.0	5.16	51.79	$616.78	7.01	68.44	$616.78
DN80	3"	88.9	5.49	67.75	$616.78	7.62	91.64	$616.78
DN90	3-1/2"	101.6	5.74	81.41	$616.96	8.08	111.80	$616.78
DN100	4"	114.3	6.02	96.45	$616.78	8.56	133.92	$616.78
DN125	5"	141.3	6.55	130.59	$616.80	9.53	185.80	$616.78
DN150	6"	168.3	7.11	169.57	$645.11	10.97	255.37	$645.11
DN200	8"	219.1	8.18	255.28	$640.17	12.7	387.84	$640.17
DN250	10"	273.0	9.27	361.73	$640.17	15.09	575.84	$640.17
DN300	12"	323.8	10.31	478.22	$650.36	17.48	792.25	$650.36
DN350	14"	355.6	11.13	567.27	$650.73
DN400	16"	406.4	12.7	739.80	$650.73
DN450	18"	457.2	14.27	935.20	$670.37

Request the latest ASTM A234 Price List. Please Call +91 98691 88888 or Send an Email to sales@duplexsteel.org for ASTM A234 Ready stock information and updated price list.

Testings (Destructive, Non Destructive):

Positive Material Identification - PMI Testing
Chemical Analysis - Spectro Analysis
Mechanical Testing Such as Tensile, Elongation, Reduction of Area
Micro Test
Macro Test
Hardness Test

Pitting Resistance Test
Intergranular Corrosion (IGC) Test
Flaring Test
Flattening Test
Hydrostatic Test
Hydrogen-Induced Cracking (HIC) Test, NACE TM0284

Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
Radiography Test
Dye Penetrant Test (DP Test)
Ultra Sonic Test (UT)
Eddy Current Testing
Impact Test
Bend Test

Packing :

We DUPLEX STEEL & ENGINEERING Ensure the best quality of Packing, because its play important role especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put extraordinary concern regarding packaging.

We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as:--

Boxes and Crates
Shrink-wrapped
Carton boxes
Wooden pallets
Wooden boxes
Wooden crates

APPLICATION :

Chemical tanks
Pulp & Paper Industries
Petrochemical Industries
Power Generation Industries
Oil & Gas Industries
Desalination
Architecture and Construction
Food Processing Equipment
Biofuels plant
Cargo tanks for ships and trucks
Chemical Industries Pumps, fans, centrifuges, sulphur melting coils,
Digester in sulphate and sulfite plants, blow tanks, blow lines

COUNTRIES WE EXPORT TO :

DUPLEX STEEL & ENGINEERING manufactures and exports Astm A234 to various countries such as Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Spain, France, United Kingdom, Indonesia, Israel, Iran, Russia, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia

CITIES WE DELIVER TO :

DUPLEX STEEL & ENGINEERING manufactures and exports Astm A234 to multiple cities such as Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gujarat, Gurgaon, Ahmedabad, Seoul, Hyderabad, Nashik , Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad,Gujarat, Houston, Dubai, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Howrah, Sydney, Ahvaz, Karachi, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo
