FOR A 400

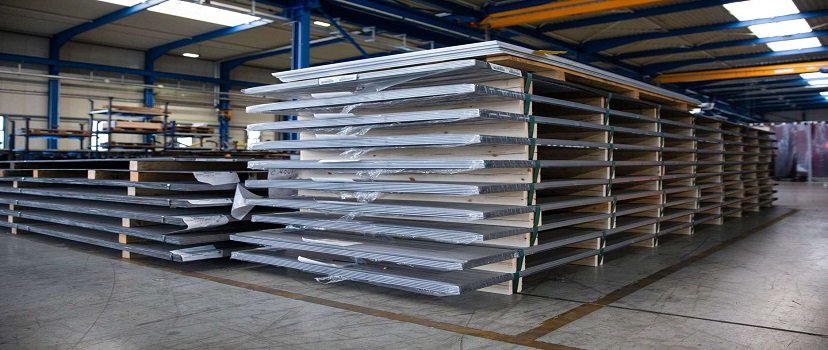

FOR-A-400-sheet-plate

Unisteel and Engineering are one of the leading suppleir FOR A 400 500 put on Abrasion Resistant Sheet Plates suppliers, producer and Exporters. we are authorized shippers of FOR A four hundred and 500 plates in India. FOR A metallic is the main organization situated in Sweden which produces these wear plates of FOR A 400 and 500. FOR A four hundred and 500 is utilized to persevere states of overwhelming wear and whilst exceptional nice and splendid weld potential is needed. FOR A 400 is applied in packages, as an example, loader cans, mining truck bodies, sporting parts of farming machines, wearing components of mining machines, squander expulsion tools and urban vans, put on plates, where requests on put on obstruction are excessive. by means of using FOR A 400 extra slim measurements can be applied and generally speakme car weight brought down, in this manner empowering accelerated payloads.

FOR A 400 500 put on Abrasion Resistant Sheet Plates is used to preserve conditions of overpowering put on and while outstanding trength and tremendous weld restriction is required. FOR A four hundred 500 wear Abrasion Resistant Sheet Plates is used as a chunk of employments, as an instance, loader booths, mining truck bodies, sporting parts of provincial machines, wearing parts of mining machines, waste ejection apparatus and solid vans, wear plates, wherein asks for on put on obstruction are high. FOR A four hundred 500 wear Abrasion Resistant Sheet Plates progressively narrow estimations can be used and general automobile weight reduce down, along these traces permitting prolonged payloads. We preserve up all the sizes and thickness of FOR A 400 & 500 put on Abrasion Resistant Sheet Plates from 03mm ~ 16mm thickness. FOR A 400 & 500 put on Abrasion Resistant Sheet Plates we offer beautiful, lower cost yet the high-quality association. as it should be to that our attestation account these days is in various countries like Egypt, South america Saudi arabia, Thailand,Kuwait,Kazakhstan, Qatar, Oman, Yemen, UAE, Iran, Turkey, Greece, Singapore, Indonesia, Vietnam, South Africa,Brazil, India, Australia.

SPECIFICATIONS of FOR A 400 Plates / Sheets :


Item FOR A 400 Plate
Material HARDOX 500 ,HARDOX 400 ,HARDOX 450,HARDOX 600,SUMIHARD ,NICRODUR,BRINAR ,DUROSTAT ,DILLIDUR ,JFE EVERHARD
Thickness 0.1mm To 100 mm
Width 500-3000mm
Length 1000-12000mm
Heat Treatment N, Q+T
Surface Paint EP, PE, HDP, SMP, PVDF
Export to Saudi arabia, Kuwait, Qatar, Oman, Yemen, UAE, Iran, Turkey, Kazakhstan, Greece, Singapore, Thailand, Indonesia, Vietnam, South Africa,South America,Brazil, India, Australia, Egypt

SIZE of FOR A 400 PLATES / SHEETS :


GRADE GAUGE (INCHES) WIDTH (INCHES) LENGTH (INCHES)
HB 400 / ABREX 400 / Hardox 400 0.3750 60/96/120 480
Hardox 400 Wear Clad Steel Plates 0.5000 60/96/120 480
Ssab Hardox 400 Wear Plates 0.6250 60/96/120 480
Abrex 400 Wear Plates 0.7500 60/96/120 480
Material Hardox 400 Wear Resistant Steel Plates 0.8750 60/96/120 480
Dillidur 400 Wear Plates Material 1.0000 60/96/120 480
Hardox 400 Material Wear Resistant Plates 1.1250 60/96/120 480
Hardox 400 Hb Clad Steel Plates 1.2500 60/96/120 480
Rolling Hardox 400 Wear Plates Material 1.5000 60/96/120 480
Hardox 400 Steel Plates 1.7500 60/96/120 480
Steel Hardox 400 Plates 2.0000 60/96/120 480
400 Hb Wear Resistant Steel Plates 2.2500 60/96/120 480
High Wear Resistant Steel 400 Plates 2.5000 60/96/120 480
High Wear Resistant 400 Hb Clad Plates 2.7500 60/96/120 480
High Wear Resistant Material 400 Hb Plates 3.0000 60/96/120 480
Wear Resistant Steel 400 Hb Clad Plate 3.5000 60/96/120 480
Abrasion Resistant Steel Hardox 400 Plate 4.0000 60/96/120 480

Hardness of FOR A 400 Plates / Sheets :


Grade Product Thickness (mm) Hardness Range (HBW)
400 AR Cut Lengths 2.5 - 6.4 360 - 420
400 AR Heavy Plates 5 - 15 360 - 420
400 AR Heavy Plates 15- 30 360 - 450
400 AR Heavy Plates 30 - 60 360 - 480

FOR A 400 PLATE PROPERTIES :


Brand Manufacture/Co HARDNESS RANGE C.E.V. Typical Values
Values for AR 400 Thk: 10 – 20 - -
Hardox 400 SSAB 370-430 0.37
QUARD 400 DUFERCO 370-430 0.42
JFE EVERHARD 360LE JFE STEEL CORPN. 360-430 0.38
SUMIHARD K400 SUMITOMO METALS 400-440 0.46
ABRAZO 400 TATA UK LTD. 360-430 0.43
RAEX 400 RUUKKI 360-430 0.43
DILLIDUR 400V DILLINGER HUTTE 370-430 0.43
XAR 400 THYSSEN KRUPP 370-430 0.43
BRINAR 400 ILSENBURGER GROBBLECH 360-430 0.48
FORA 400 INDUSTEEL 360-430 0.48
HARDPLAST 380 ISD HUTA 360-430 0.56
NICRODUR 400 ACRONI 360-430 0.56
CREUSABRO 4800 INDUSTEEL 360-430 0.48
WELHARD 400 NSC/JAPAN 400-440 0.46
BIS Plate 320 Bisalloy Steels Pty Ltd 320-360 0.4
BIS Plate 400 Bisalloy Steels Pty Ltd 370-430 0.4
BIS Plate 450 Bisalloy Steels Pty Ltd 425-475 0.48
Rockstar 400 Essar Steel India Ltd. 370-430 0.45
Rockstar 450 Essar Steel India Ltd. 425-475 0.52
Rockstar 500 Essar Steel India Ltd. 450-540 0.6
Abrex 400 NSSMC 360-440 0.4
Abrex 450 NSSMC 410-490 0.5
Abrex 500 NSSMC 450-550 0.55
Abrex 600 NSSMC 550-650 0.73

Equivalent Grades of FOR A 400 Plates / Sheets :


Designation Available thickness mm Feature
Hardness Application and processing features
FOR A 400 6-100 Approx. HB 400 High abrasion resistance and weldability

Chemical Composition of FOR A 400 Plates / Sheets :


C Mn P S Cr Ni Mo B
0.20 1.4 0.02 0.003 1.0 0.5 0.2 Fora 0.003

Mechanical Properties of FOR A 400 Plates / Sheets :


Hardness Yield
Strength ¹
UTS ¹ E 5.65 √S(1)
(%)
KCV Transv.
- 20°C (- 4°F)
KCV Transv.
- 40°C (- 40°F)
400HB 1100
N/mm ²
1350
N/mm ²
13 35J/cm²(t=15mm)
65J/cm²(t= 5mm)
20J/cm²(t=15mm)
45J/cm²(t= 5mm)
42.5 HRC 160 Ksi 195 Ksi 13 21ft.lbs(t=15mm)
38ft.lbs(t= 5mm)
12ft.lbs(t=15mm)
27ft.lbs(t= 5mm)


FOR A 400 Plates / Sheets Price (As per demand and manufacturer):


Hardox 400/ 450 Plate Price
SSAB hardox 400 450 Wear Resistant Steel Plate price ₹ 39,364.00-₹ 50,099.63 / Ton
Top quality hardox 400 450 Wear Resistant Steel Plate ₹ 42,870.97-₹ 1,21,598.96 / Ton
price hardox plate 400 450 price ₹ 42,870.97-₹ 1,21,598.96 / Ton
hardox 450 Wear Steel Plate ₹ 42,870.97-₹ 1,21,598.96 / Ton
Hot rolled hardox 400 450 Wear Resistant Steel Plate ₹ 1,04,493.52-₹ 1,14,513.44 / Ton
Best Price Hardox 400 450 Steel Plate ₹ 42,870.97-₹ 1,21,598.96 / Ton
hardox 400 450 Wear Resistant Steel Plate/Sheet Price per kg ₹ 42,942.54-₹ 71,570.90 / Ton
Manganese wear resistant steel plate hardox 400 ₹ 42,942.54-₹ 53,678.18 / Ton
Wear plate high quality hardox 400/hardox 450 ₹ 1,00,199.26-₹ 1,28,827.62 / Ton


Testings (Destructive, Non Destructive):

  • Positive Material Identification - PMI Testing
  • Chemical Analysis - Spectro Analysis
  • Mechanical Testing Such as Tensile, Elongation, Reduction of Area
  • Micro Test
  • Macro Test
  • Hardness Test
  • Pitting Resistance Test
  • Intergranular Corrosion (IGC) Test
  • Flaring Test
  • Flattening Test
  • Hydrostatic Test
  • Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
  • Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
  • Radiography Test
  • Dye Penetrant Test (DP Test)
  • Ultra Sonic Test (UT)
  • Eddy Current Testing
  • Impact Test
  • Bend Test

Packing :

We DUPLEX STEEL & ENGINEERING Ensure the best quality of Packing, because its play important role especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put extraordinary concern regarding packaging.

We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as:--

  • Boxes and Crates
  • Shrink-wrapped
  • Carton boxes
  • Wooden pallets
  • Wooden boxes
  • Wooden crates

APPLICATION :

  • Chemical tanks
  • Pulp & Paper Industries
  • Petrochemical Industries
  • Power Generation Industries
  • Oil & Gas Industries
  • Desalination
  • Architecture and Construction
  • Food Processing Equipment
  • Biofuels plant
  • Cargo tanks for ships and trucks
  • Chemical Industries Pumps, fans, centrifuges, sulphur melting coils,
  • Digester in sulphate and sulfite plants, blow tanks, blow lines

DUPLEX STEEL & ENGINEERING manufactures and exports ​FOR A 400 Hot Products​ to various countries such as Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Spain, France, United Kingdom, Indonesia, Israel, Iran, Russia, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia

DUPLEX STEEL & ENGINEERING manufactures and exports ​FOR A 400 Hot Products to multiple cities such as Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gujarat, Gurgaon, Ahmedabad, Seoul, Hyderabad, Nashik , Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad,Gujarat, Houston, Dubai, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Howrah, Sydney, Ahvaz, Karachi, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo
