Duplex 2205 PLATE | Duplex 2205 COIL / SHEET

duplex-steel-2205-sheet-plate

Duplex 2205 Plate, Duplex 2205 Chequered Plates, Duplex 2205 Cold rolled sheets Exporter, Duplex Steel JIS SUS 2205 sheets, Duplex Werkstoff Nr. 1.4462 Coils Stockholder in India.

DUPLEX STEEL & ENGINEERING is a leading manufacturer, exporter & supplier of wide range of high quality Duplex Steel 2205 Plates, is also known as UNS S32205 Plate, and is the most widely used duplex (ferritic/austenitic) stainless steel grade. We offered Duplex 2205 Plates, Sheets and Coil finds applications due to both excellent corrosion resistance and high strength that are really made from high quality of standard raw materials and are outlined according to with national and universal guidelines. Forging temperature for these Duplex 2205 Plate should be 1100 Degree C – 1250 Degree C, where re – heat the same as often as necessary and cool in still air. DuplexSteel UNS S32205 Perforated Sheets is two - phase, ferritic and austenitic steel by means of having 22 percent of chromium, 3 percent of molybdenum, 5 percent - 6 percent of nickel alloy.

our Duplex Steel 2205 Plates gives better guaranteed corrosion resistance, but for much of the Duplex S31803 currently produced also complies with Duplex S31803. In the mean time, we produce high quality Duplex Steel 2205 Sheets that have a blended microstructure of austenite and ferrite, the point being to create a 50/50 blend, in spite of the fact that in business composites, the blend might be 40/60 individually.

The Duplex 2205 Plate is the most widely used of the duplex stainless steels occupying more than 80% of the duplex stainless steel market. The 2205 alloy provides better corrosion resistance in various environments where 316L is generally used with an added advantage of its higher yield strength. All 2205 alloys are metallographically examined to ensure that the shipped product is free from presence of detrimental phases such as sigma. It is often used in form of welded pipe or tubular components. The alloy has also been applied as a formed and welded sheet product in environments where resistance to general corrosion and chloride stress corrosion cracking is important.

duplex-steel-2205-sheet-plate

SPECIFICATIONS of DUPLEX 2205 Plate / Sheet / Coil :


Grade Duplex Steel 2205 | UNS S31803/S32205
Standard ASTM A240 / ASME SA240
Thickness 0.1mm To 100 mm
Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc
Finish Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form Sheets, Plates, Coils, Foils, Rolls, Plain Sheet, Shim sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Circle (Blank), Ring (Flange), etc.
Test Certificate MTC, Lab TC from Govt. App. Lab. with Third Party Inspection

Duplex 2205 Sheet, Duplex 2205 Plate, Manufacture duplex steel 2205 sheet, ASTM A240 Duplex 2205 Sheet, UNS S31803 Duplex Steel 2205 plate, Duplex Steel 2205 Coils supplier in Mumbai.


TYPE of DUPLEX STEEL 2205 PLATES / SHEETS / COILS:

duplex 2205 Sheets
  • Duplex 2205 Sheets
  • UNS S31803 Duplex Sheets
  • WNR. 1.4462 Sheets
  • ASME SA240 Duplex S32205 Sheets
  • ASTM A240 Stainless Steel 2205 Sheets
  • EN 10088-1 Duplex Steel S31803 Sheet
  • SA-240 Duplex 2205 Cold Rolled Sheet
  • IS 6911 Stainless Steel S32205 Sheets
  • Duplex S31803 Finish #4 Sheets

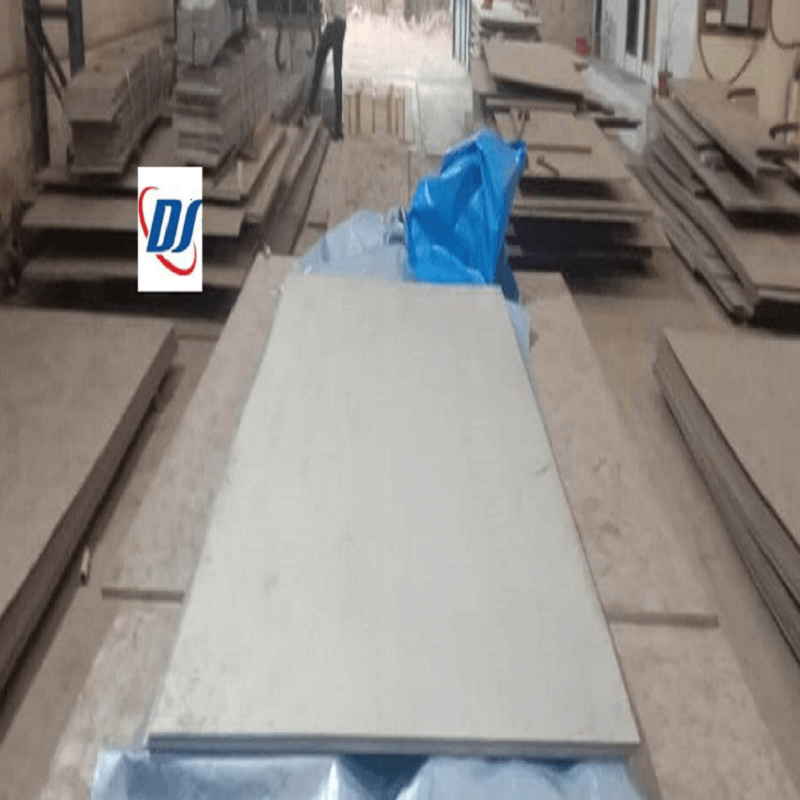

duplex 2205 plates
  • Duplex 2205 Plates
  • UNS S31803 Duplex Plates
  • WNR. 1.4462 Plates
  • ASME SA240 Duplex S32205 Plates
  • ASTM A240 Stainless Steel 2205 Plates
  • EN 10088-1 Duplex Steel S31803 Plates
  • SA-240 Duplex 2205 Cold Rolled Plates
  • IS 6911 Stainless Steel S32205 Plates
  • Duplex S31803 Finish #4 Plates
Duplex 2205 Coil
  • Duplex 2205 Coils
  • UNS S31803 Duplex Coils
  • WNR. 1.4462 Coils
  • ASME SA240 Duplex S32205 Coils
  • ASTM A240 Stainless Steel 2205 Coils
  • EN 10088-1 Duplex Steel S31803 Coils
  • SA-240 Duplex 2205 Cold Rolled Coils
  • IS 6911 Stainless Steel S32205 Coils
  • Duplex S31803 Finish #4 Coils
Duplex 2205 Foils
  • Duplex 2205 Foils
  • UNS S31803 Duplex Foils
  • WNR. 1.4462 Foils
  • ASME SA240 Duplex S32205 Foils
  • ASTM A240 Stainless Steel 2205 Foils
  • EN 10088-1 Duplex Steel S31803 Foils
  • SA-240 Duplex 2205 Cold Rolled Foils
  • IS 6911 Stainless Steel S32205 Foils
  • Duplex S31803 Finish #4 Foils
Duplex 2205 Rolls
  • Duplex 2205 Rolls
  • UNS S31803 Duplex Rolls
  • WNR. 1.4462 Rolls
  • ASME SA240 Duplex S32205 Rolls
  • ASTM A240 Stainless Steel 2205 Rolls
  • EN 10088-1 Duplex Steel S31803 Rolls
  • SA-240 Duplex 2205 Cold Rolled Rolls
  • IS 6911 Stainless Steel S32205 Rolls
  • Duplex S31803 Finish #4 Rolls
Duplex 2205 Chequered Plate
  • Duplex 2205 Chequered Plate
  • UNS S31803 Duplex Chequered Plate
  • WNR. 1.4462 Chequered Plate
  • ASME SA240 Duplex S32205 Chequered Plate
  • ASTM A240 Stainless Steel 2205 Chequered Plate
  • EN 10088-1 Duplex Steel S31803 Chequered Plate
  • SA-240 Duplex 2205 Cold Rolled Chequered Plate
  • IS 6911 Stainless Steel S32205 Chequered Plate
  • Duplex S31803 Finish #4 Chequered Plate
duplex 2205 shim sheet
  • Duplex 2205 Shim Sheet
  • UNS S31803 Duplex Shim Sheet
  • WNR. 1.4462 Shim Sheet
  • ASME SA240 Duplex S32205 Shim Sheet
  • ASTM A240 Stainless Steel 2205 Shim Sheet
  • EN 10088-1 Duplex Steel S31803 Shim Sheet
  • SA-240 Duplex 2205 Cold Rolled Shim Sheet
  • IS 6911 Stainless Steel S32205 Shim Sheet
  • Duplex S31803 Finish #4 Shim Sheet
duplex 2205 Perforated Sheet
  • Duplex 2205 Perforated Sheet
  • UNS S31803 Duplex Perforated Sheet
  • WNR. 1.4462 Perforated Sheet
  • ASME SA240 Duplex S32205 Perforated Sheet
  • ASTM A240 Stainless Steel 2205 Perforated Sheet
  • EN 10088-1 Duplex Steel S31803 Perforated Sheet
  • SA-240 Duplex 2205 Cold Rolled Perforated Sheet
  • IS 6911 Stainless Steel S32205 Perforated Sheet
  • Duplex S31803 Finish #4 Perforated Sheet
duplex 2205 Strip
  • Duplex 2205 Strip
  • UNS S31803 Duplex Strip
  • WNR. 1.4462 Strip
  • ASME SA240 Duplex S32205 Strip
  • ASTM A240 Stainless Steel 2205 Strip
  • EN 10088-1 Duplex Steel S31803 Strip
  • SA-240 Duplex 2205 Cold Rolled Strip
  • IS 6911 Stainless Steel S32205 Strip
  • Duplex S31803 Finish #4 Strip
duplex 2205 circle
  • Duplex 2205 Circle
  • UNS S31803 Duplex Circle
  • WNR. 1.4462 Circle
  • ASME SA240 Duplex S32205 Circle
  • ASTM A240 Stainless Steel 2205 Circle
  • EN 10088-1 Duplex Steel S31803 Circle
  • SA-240 Duplex 2205 Cold Rolled Circle
  • IS 6911 Stainless Steel S32205 Circle
  • Duplex S31803 Finish #4 Circle
duplex 2205 Rings
  • Duplex 2205 Ring
  • UNS S31803 Duplex Ring
  • WNR. 1.4462 Ring
  • ASME SA240 Duplex S32205 Ring
  • ASTM A240 Stainless Steel 2205 Ring
  • EN 10088-1 Duplex Steel S31803 Ring
  • SA-240 Duplex 2205 Cold Rolled Ring
  • IS 6911 Stainless Steel S32205 Ring
  • Duplex S31803 Finish #4 Ring
duplex 2205 Flat
  • Duplex 2205 Flats
  • UNS S31803 Duplex Flats
  • WNR. 1.4462 Flats
  • ASME SA240 Duplex S32205 Flats
  • ASTM A240 Stainless Steel 2205 Flats
  • EN 10088-1 Duplex Steel S31803 Flats
  • SA-240 Duplex 2205 Cold Rolled Flats
  • IS 6911 Stainless Steel S32205 Flats
  • Duplex S31803 Finish #4 Flats


Dimensions of Duplex Steel 2205 PLATES / SHEETS / COILS :

duplex-steel-2205-sheet-dimensions
Material Size Thickness
PLATES / SHEETS / COILS 1000 mm x 2000 mm0.1mm To 100 mm Thickness
1220 mm x 2440 mm (4' x 8')
1250 mm x 2500 mm
1500 mm x 3000 mm
2000 mm x 4000 mm
2000 mm x 2000 mm

Circle cutting in SAF 2205 perforated sheets up to 1000mm diameter. :
Hole Dia (in mm) Hole Centres
(in mm)
O/A Finish Thk Full Sheet Size
(in mm)
0.75 1.5 23% 2B 0.6 2000 x 1000
1 2 23% 2B 1.0 2000 x 1000
1.5 2.6 30% 2B 1.0 2000 x 1000
2 3.5 30% 2B 1.0 2000 x 1000
2 3.5 30% 2B 1.0 2000 x 1000
3 5 33% 2B 1.0 2000 x 1000
4 5.6 46% 2B 1.0 2000 x 1000
5 8 35% 2B 1.0 2000 x 1000
6 8 51% 2B 1.0 2000 x 1000
8 10 58% 2B 1,0 2000 x 1000

PLAIN AND POLISHED S31803 Duplex Sheet
PRODUCT FINISH THICKNESS MM MAX SHEET SIZE MM
Grade 2205 Plain 2B 0.9 2000 x 1000
Bright 0.9 2000 x 1000
Brushed Finish 0.9, 1.2 2000 x 1000, 2500 x 1250
Rimex Super Mirror 0.8, 1.2 2400 x 1200, 2500 x 1250
Embossed 0.8, 1.0 2500 x 1250


SIZE of DUPLEX STEEL 2205 - UNS S31803 PLATES / SHEETS / COILS:


ASTM A240 Type 2205 Plate Imperial size
Surface finish Thickness (in) Width (in)
1 – Duplex 2205 Hot rolled, heat treated, pickled Plate & Sheet .1000 – .3750 max. 72
2R – Duplex 2205 Cold-rolled, bright-annealed Sheet & Plate 0.002–0.06 0.118–25.551
2H – Duplex 2205 Work hardened Plate & Sheet 0.002–0.06 0.118–24.803
2B – Duplex 2205 Cold rolled, heat treated, pickled, skin passed Sheet & Plate 10–24 max. 72*
2D – Duplex 2205 Cold rolled, heat treated, pickled Plate & Sheet 12–24 max. 60
BA Mexinox only 18–28 max. 48
Deco Rolled-On Mexinox only 14–28 max. 48
Duplex 2205 Polished Plate & Sheet (not brushed) 11–24 max. 60
Temper rolled Mexinox only 13–29 max. 48


Size of ASTM A240 Alloy 2205 Plate Metric :
Surface finish Thickness (mm) Width (mm)
Duplex 2205 1D – Hot rolled, heat treated, pickled Plate & Sheet 2.4–12.7 max. 2032
2R – Duplex 2205 Cold-rolled, bright-annealed Sheet & Plate 0.05–1.50 3–649
2H – Duplex 2205 Work hardened Plate & Sheet 0.05–1.50 3–630
2B – Duplex 2205 Cold rolled, heat treated, pickled, skin passed Sheet & Plate 0.25–8.0 max. 2032
2D – Duplex 2205 Cold rolled, heat treated, pickled Plate & Sheet 0.4–6.35 max. 1524
2E – Duplex 2205 Cold rolled, heat treated, mechanically descaled Sheet & Plate 0.4–8.0 max. 2032
2R – Duplex 2205 Cold rolled, bright annealed Plate & Sheet 0.25–3.5 max. 1524
2H – Duplex 2205 Work hardened Sheet & Plate 0.4–6.35 max. 1524
Duplex 2205 Polished, brushed Plate & Sheet 0.5–4.0 max. 1524
Deco 0.3–3.5 max. 1524
Duplex 2205 Coil 0.30–3.5 max. 1,524


AVAILABLE STOCK OF DUPLEX STEEL 2205 - UNS S31803 Plates / Sheets / Coil:


Preview Products UNS DIN
Duplex Steel S32205 Sheet Duplex Steel 2205 Sheet
Duplex Steel S31803 Sheet
UNS S32205 Sheets
UNS S31803 Sheets
1.4462 Sheets
Duplex Steel S32205 Plates Duplex Steel 2205 Plate
Duplex Steel S31803 Plate
UNS S32205 Plates
UNS S31803 Plates
1.4462 Plates
Duplex Steel S32205 Coils Duplex Steel 2205 Coils
Duplex Steel S31803 Coils
UNS S32205 Coil
UNS S31803 Coil
1.4462 Coils
Duplex Steel S32205 Foils Duplex Steel 2205 Foils
Duplex Steel S31803 Foils
UNS S32205 Foil
UNS S31803 Foil
1.4462 Foils
Duplex Steel S32205 Strip Duplex Steel 2205 Strip
Duplex Steel S31803 Strip
UNS S32205 Strips
UNS S31803 Strips
1.4462 Strip


Equivalent Grades of Duplex Steel 2205 - UNS S31803 Plates / Sheets / Coil :


STANDARD UNS WERKSTOFF NR.
Duplex S31803 S31803 1.4462
Duplex 2205 S32205 1.4462


Chemical Composition of 2205 - UNS S31803 Duplex Plates / Sheets / Coil :


Grade UNS No C % Cr % Ni % P % Si % S % Mo % N % Mn %
31803 S31803 < 0.03 21.0-23.0 4.5-6.5 1.03 max 1 max 0.02 max 2.5-3.5 0.08-0.2 < 2.0
2205 S32205 < 0.03 22.0-23.0 4.5-6.5 0.03 max 1 max 0.02 max 3.0-3.5 0.14-0.20 < 2.0


Mechanical Properties of Duplex Steel 2205 - UNS S31803 Plates / Sheets / Coil :


Grade YS (MPa) UTS (MPa) % Elongation Hardness(BHN)
31803 450 min. 620 min. 25 min. 293 max.
2205 450 min. 655 min. 25 min. 293 max.


Duplex 2205 - UNS S31803 Plates / Sheets / Coil Price Per Kg (As per demand and manufacturer):


duplex-steel-2205-sheet-plate
Duplex Steel Price Rang by country  Sheet Price
(per kg)
Plate Price
(per kg)
Coil Price
(per kg)
UNS S32205 Duplex Stainless Steel Price in India (₹) 400 - 450  380 - 430  370 - 420
Duplex 2205 UNS S32205 Price in Malaysia (RM) 21.72 - 24.44 20.63 - 23.35 20.09 - 22.81
Duplex 2205 UNS S31803 Price in Singapore (S$) 6.49 - 7.30 6.16 - 6.97 6.00 - 6.81
Duplex 2205 Price in UAE (Dirham) 17.98 - 20.23 17.08- 19.33 16.63 - 18.88
Duplex 2205 Stainless Steel Price in UK ( £) 3.25 - 3.49 3.68 - 4.17 3.59 - 4.07
Duplex 2205 Stainless Steel Price in Europe (€) 4.43 - 4.99 4.21 - 4.77 4.10 - 4.66
Stainless Steel Duplex Grade 2205 Price in USA ($) 4.90 - 5.51 4.65 - 5.26 4.53 - 5.14

General Characteristics :

  • 1. PREN value 34 (Pitting Resistance Equivalent Number: %Cr +3.3*%Mo+16*%N)
  • 2. It is an extra Low Carbon Duplex Stainless steel,
  • 3. Its yield strength is nearly twice as that of the Austenitic Stainless Steels.
  • 4. It has good weldabilitywith minimal inter-granular corrosion in as welded condition.
  • 5. It has high resistance to SCC in chloride and in hydrogen sulfide containing environments.
  • 6. Exhibits high resistance to corrosion fatigue, pitting and crevice corrosion and erosion-corrosion.

Machinability :

  • Cutting procedures with high speed steel tools are same as for AISI 316.
  • With carbide tipped tools, the cutting speeds should be 40% less than for AISI 316 in roughing operations and 20% less for finish machining.

Fabricability :

  • Nearly twice the force is required to initiate plastic deformation compared to that required for AISI 304L and 316L.
  • Plastic deformation proceeds as easily as in Austenitic stainless steel beyond yield strength.
  • It can be cold bent to 25% deformation without requiring subsequent heat treatment.
  • Bending should be followed by annealing if the service conditions are prone to SCC.
  • Hot bending maybe carried out in the range 950-1100 deg C and should be followed by quench annealing.
  • Normal expanding methods can be used while expanding its tubes, but higher initial force is required and it should be completed in a single operation.

Weldability :

  • It is welded easily by Manual Metal Arc Welding (MMAW) using covered electrode, (GTAW), Gas Metal Arc Welding (GMAW).
  • Heat input should be in the range of 0.5-2.5k1/mm
  • Interpass temperature should be held to 150 deg C max.
  • Preheat or postweld heat treatment is normally not required.
  • Typical Filler metals are overalloyed with nickel like E2209.
  • Welding with carbon steels, other stainless steels and nickel alloys is readily achieved.

Corrosion Resistance :

  • Has better general corrosion resistance as compared to AISI 316L and 317L
  • Welded joints easily pass inter-granular corrosion testing as per ASTM A262 Practice E-Strauss Test.
  • Better resistance to pitting and crevice attack than 304 and 316 at higher temperatures and chloride contents.
  • The combined high strength, hardness and corrosion resistance provide 2205 with superior corrosion fatigue and erosion / corrosion resistance.

Testings (Destructive, Non Destructive):

  • Positive Material Identification - PMI Testing
  • Chemical Analysis - Spectro Analysis
  • Mechanical Testing Such as Tensile, Elongation, Reduction of Area
  • Micro Test
  • Macro Test
  • Hardness Test
  • Pitting Resistance Test
  • Intergranular Corrosion (IGC) Test
  • Flaring Test
  • Flattening Test
  • Hydrostatic Test
  • Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
  • Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
  • Radiography Test
  • Dye Penetrant Test (DP Test)
  • Ultra Sonic Test (UT)
  • Eddy Current Testing
  • Impact Test
  • Bend Test

Packing :

We DUPLEX STEEL & ENGINEERING Ensure the best quality of Packing, because its play important role especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put extraordinary concern regarding packaging.

We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as:--

  • Boxes and Crates
  • Shrink-wrapped
  • Carton boxes
  • Wooden pallets
  • Wooden boxes
  • Wooden crates

APPLICATION :

  • Chemical tanks
  • Pulp & Paper Industries
  • Petrochemical Industries
  • Power Generation Industries
  • Oil & Gas Industries
  • Desalination
  • Architecture and Construction
  • Food Processing Equipment
  • Biofuels plant
  • Cargo tanks for ships and trucks
  • Chemical Industries Pumps, fans, centrifuges, sulphur melting coils,
  • Digester in sulphate and sulfite plants, blow tanks, blow lines

DUPLEX STEEL & ENGINEERINGS Corporation manufactures and exports ​Duplex UNS S31803/S32205 Sheets, Plates & Coils | WNR. 1.4462 Sheets, Plates & Coils​ to various countries such as Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Spain, France, United Kingdom, Indonesia, Israel, Iran, Russia, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia

DUPLEX STEEL & ENGINEERINGS Corporation manufactures and exports ​Duplex UNS S31803/S32205 Sheets, Plates & Coils | WNR. 1.4462 Sheets, Plates & Coils to multiple cities such as Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gujarat, Gurgaon, Ahmedabad, Seoul, Hyderabad, Nashik , Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad,Gujarat, Houston, Dubai, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Howrah, Sydney, Ahvaz, Karachi, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo
