Super Duplex Steel 2507 - UNS S32750 - F53 Buttweld Fitting

Super Duplex Steel 2507
Duplex Steel


Products

Download brochure

Here is some useful documents


Table of Contents :

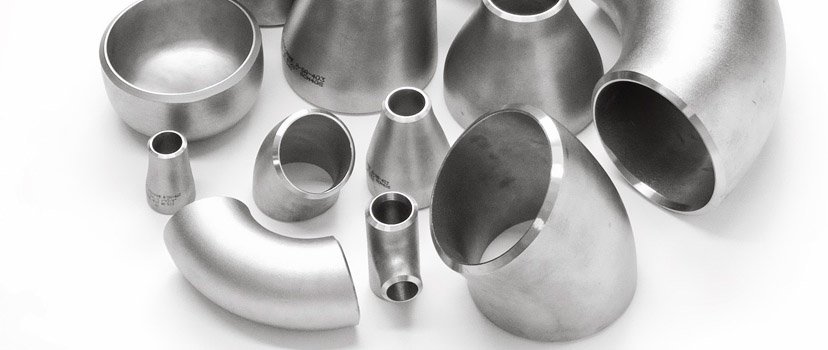

super-duplex-steel-2507-Buttweld Fitting

Super Duplex 2507 Buttweld Fittings, Alloy 2507 Threaded Bend tube in Saudi Arabia, Super Duplex ASTM A815 UNS S32750 Fitting Cross ,UNS S32750 Super Duplex Short Radius Elbow, UNS S32750 Super Duplex Hex Plus Supplier in Mumbai.

By using abilities of our accomplished experts, we at Duplex Steel & Engineering are manufacturing, exporting and supplying a comprehensive range of Super Duplex Steel S32750 Pipe Fittings, Super Duplex 2507 Buttweld Fittings to our valued customers worldwide. Our product Super Duplex 2507 Elbow Pipe Fittings is designed to feature high strength, resistance to pitting, stress corrosion cracking.

Our Super Duplex S32760 Equal Tee Butt Weld Pipe Fittings is suited to a variety of applications in industries such as Chemical Processing, Oil & Gas, and Marine environments. Super Duplex Stainless steels, which combine high strength and excellent corrosion resistance in many environments, have found applications in chemical and process industries. Pulp mills, offshore systems, flue gas desulphurization units. Localized corrosion resistance of Super-Duplex Steels is close to what is achieved with 6% Mo Super-Austenitic grades.

super-duplex-f53-Buttweld-Fitting

SPECIFICATIONS of Super DUPLEX STEEL 2507 - UNS S32750 - F53 Buttweld Fitting :


Grade Super Duplex Steel 2507, Duplex Steel
Standard ASTM A815 / ASME SB815
Dimensions ANSI/ASME B16.9, B16.28, MSS-SP-43.
Thickness 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75
Size 1/2" NB - 24" NB
Form Seamless / Welded / Fabricated
Schedule SCH 5 To SCH XXS
Type 90 Elbow, 45 Elbow, Long Radius Elbow, Short Radius Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Unequal Tee, Lateral Tee, Cross, Bends 1.5d, 3d, 5d, 10d, U bend, 180 Deg Bend, Short Stub End, Long stub end, End Cap, Dish Cap, etc.

UNS S32750 Super Duplex Short Radius Elbow, UNS S32750 Super Duplex Hex Plus in south africa, Super Duplex ASTM B815 UNS S32750 Pipe Bend Pipe U in usa, UNS S32750 Super Duplex Threaded Bend Coil manufacturer in India.


TYPE of Super DUPLEX STEEL 2507 - UNS S32750 - F53 BUTTWELD FITTING :

Concentric Reducer
  • Duplex 2507 Concentric Reducer
  • UNS S32750 Duplex Concentric Reducer
  • WNR. 1.4410 Concentric Reducer
  • ASME SB815 Duplex S32750 Concentric Reducer
  • ASTM A815 Stainless Steel 2507 Concentric Reducer
  • EN 10253-4 Duplex Steel S32750 Concentric Reducer
  • SB815 Duplex 2507 MSS SP43 Concentric Reducer
  • ANSI B16.9 Duplex Concentric Reducer
  • BS1560 Stainless Steel S32750 Concentric Reducer
  • S32750 Duplex MSS-SP-43 Concentric Reducer
Elbow 45 Deg.
  • Duplex 2507 Elbow 45 Deg.
  • UNS S32750 Duplex Elbow 45 Deg.
  • WNR. 1.4410 Elbow 45 Deg.
  • ASME SB815 Duplex S32750 Elbow 45 Deg.
  • ASTM A815 Stainless Steel 2507 Elbow 45 Deg.
  • EN 10253-4 Duplex Steel S32750 Elbow 45 Deg.
  • SB815 Duplex 2507 MSS SP43 Elbow 45 Deg.
  • ANSI B16.9 Duplex Elbow 45 Deg.
  • BS1560 Stainless Steel S32750 Elbow 45 Deg.
  • S32750 Duplex MSS-SP-43 Elbow 45 Deg.
Elbow 90 Deg.
  • Duplex 2507 Elbow 90 Deg.
  • UNS S32750 Duplex Elbow 90 Deg.
  • WNR. 1.4410 Elbow 90 Deg.
  • ASME SB815 Duplex S32750 Elbow 90 Deg.
  • ASTM A815 Stainless Steel 2507 Elbow 90 Deg.
  • EN 10253-4 Duplex Steel S32750 Elbow 90 Deg.
  • SB815 Duplex 2507 MSS SP43 Elbow 90 Deg.
  • ANSI B16.9 Duplex Elbow 90 Deg.
  • BS1560 Stainless Steel S32750 Elbow 90 Deg.
  • S32750 Duplex MSS-SP-43 Elbow 90 Deg.

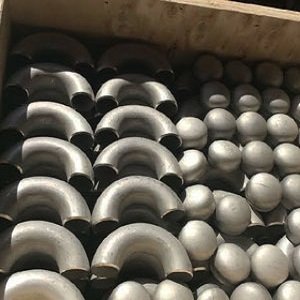

Elbow 180 Deg.
  • Duplex 2507 Elbow 180 Deg.
  • UNS S32750 Duplex Elbow 180 Deg.
  • WNR. 1.4410 Elbow 180 Deg.
  • ASME SB815 Duplex S32750 Elbow 180 Deg.
  • ASTM A815 Stainless Steel 2507 Elbow 180 Deg.
  • EN 10253-4 Duplex Steel S32750 Elbow 180 Deg.
  • SB815 Duplex 2507 MSS SP43 Elbow 180 Deg.
  • ANSI B16.9 Duplex Elbow 180 Deg.
  • BS1560 Stainless Steel S32750 Elbow 180 Deg.
  • S32750 Duplex MSS-SP-43 Elbow 180 Deg.
End Cap
  • Duplex 2507 End Cap
  • UNS S32750 Duplex End Cap
  • WNR. 1.4410 End Cap
  • ASME SB815 Duplex S32750 End Cap
  • ASTM A815 Stainless Steel 2507 End Cap
  • EN 10253-4 Duplex Steel S32750 End Cap
  • SB815 Duplex 2507 MSS SP43 End Cap
  • ANSI B16.9 Duplex End Cap
  • BS1560 Stainless Steel S32750 End Cap
  • S32750 Duplex MSS-SP-43 End Cap
Equal Tee
  • Duplex 2507 Equal Tee
  • UNS S32750 Duplex Equal Tee
  • WNR. 1.4410 Equal Tee
  • ASME SB815 Duplex S32750 Equal Tee
  • ASTM A815 Stainless Steel 2507 Equal Tee
  • EN 10253-4 Duplex Steel S32750 Equal Tee
  • SB815 Duplex 2507 MSS SP43 Equal Tee
  • ANSI B16.9 Duplex Equal Tee
  • BS1560 Stainless Steel S32750 Equal Tee
  • S32750 Duplex MSS-SP-43 Equal Tee

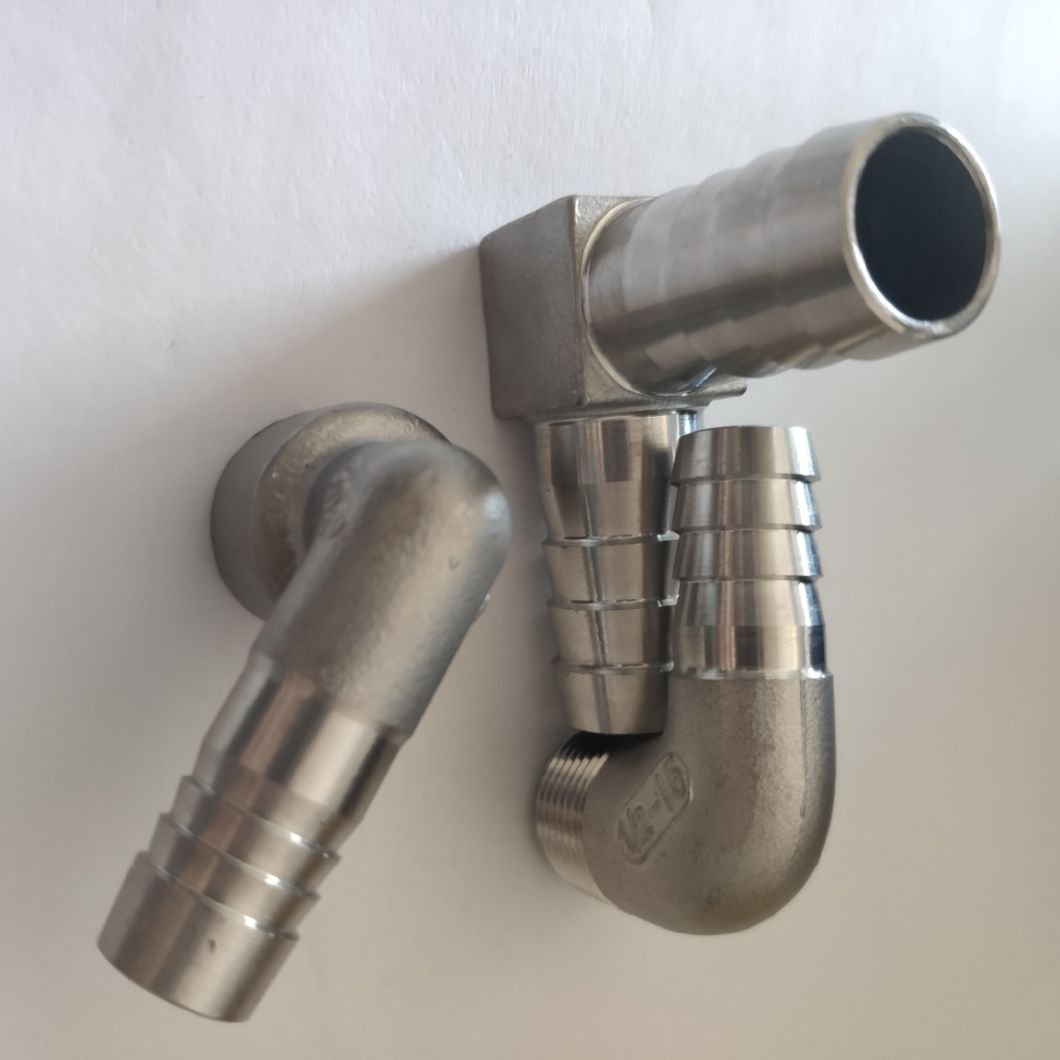

Elbow Nipple Fittings
  • Duplex 2507 Elbow Nipple Fittings
  • UNS S32750 Duplex Elbow Nipple Fittings
  • WNR. 1.4410 Elbow Nipple Fittings
  • ASME SB815 Duplex S32750 Elbow Nipple Fittings
  • ASTM A815 Stainless Steel 2507 Elbow Nipple Fittings
  • EN 10253-4 Duplex Steel S32750 Elbow Nipple Fittings
  • SB815 Duplex 2507 MSS SP43 Elbow Nipple Fittings
  • ANSI B16.9 Duplex Elbow Nipple Fittings
  • BS1560 Stainless Steel S32750 Elbow Nipple Fittings
  • S32750 Duplex MSS-SP-43 Elbow Nipple Fittings
Stub End Fitting
  • Duplex 2507 Stub End Fitting
  • UNS S32750 Duplex Stub End Fitting
  • WNR. 1.4410 Stub End Fitting
  • ASME SB815 Duplex S32750 Stub End Fitting
  • ASTM A815 Stainless Steel 2507 Stub End Fitting
  • EN 10253-4 Duplex Steel S32750 Stub End Fitting
  • SB815 Duplex 2507 MSS SP43 Stub End Fitting
  • ANSI B16.9 Duplex Stub End Fitting
  • BS1560 Stainless Steel S32750 Stub End Fitting
  • S32750 Duplex MSS-SP-43 Stub End Fitting
Eccentric Reducer
  • Duplex 2507 Eccentric Reducer
  • UNS S32750 Duplex Eccentric Reducer
  • WNR. 1.4410 Eccentric Reducer
  • ASME SB815 Duplex S32750 Eccentric Reducer
  • ASTM A815 Stainless Steel 2507 Eccentric Reducer
  • EN 10253-4 Duplex Steel S32750 Eccentric Reducer
  • SB815 Duplex 2507 MSS SP43 Eccentric Reducer
  • ANSI B16.9 Duplex Eccentric Reducer
  • BS1560 Stainless Steel S32750 Eccentric Reducer
  • S32750 Duplex MSS-SP-43 Eccentric Reducer


Dimensions of Super Duplex 2507 - UNS S32750 - F53 BUTTWELD FITTING :

duplex-steel-2507-buttweld-fitting-dimensions
Nominal
PipeSize		 Outside
Diameter		 90° Elbows 45° Elbows 180° Returns
(inches) - Long Radius Short Radius Long Radius Long Radius
  (mm) (inches) Center to Face
(inches)		 Center to Face
(inches)		 Center to Face
(inches)		 Radius
(inches)		 Center to Center
(inches)		 Back to face
(inches)
1/2 21.3 0.840 1 1/2 – 5/8   2 1 7/8
3/4 26.7 1.050 1 1/8   7/16   2 1/4 1 11/16
1 33.4 1.315 1 1/2 1 7/8   3 2 3/16
1 1/4 42.2 1.660 1 7/8 1 1/4 1   3 3/4 2 3/4
1 1/2 48.3 1.900 2 1/4 1 1/2 1 1/8 3 4 1/2 3 1/4
2 60.3 2.375 3 2 1 3/8 4 6 4 3/16
2 1/2 73.0 2.875 3 3/4 2 1/2 1 3/4 5 7 1/2 5 3/16
3 88.9 3.500 4 1/2 3 2 6 9 6 1/4
3 1/2 101.6 4.000 5 1/4 3 1/2 2 1/4 7 10 1/2 7 1/4
4 114.3 4.500 6 4 2 1/2 8 12 8 1/4
5 141.3 5.563 7 1/2 5 3 1/8 10 15 10 5/16
6 168.3 6.625 9 6 3 3/4 12 18 12 5/16
8 219.1 8.625 12 8 5 12 24 16 5/16
10 273.1 10.750 15 10 6 1/4 15 30 20 3/8
12 323.9 12.750 18 12 7 1/2 18 36 24 3/8


SIZE of Super DUPLEX STEEL 2507 - UNS S32750 - F53 BUTTWELD FITTING :


NPS
(inch)		 Pipe Sch. Wall
Thk.
(in)		 OD
(inch)		 Temperature
100 200 300 400 500
Allowable Stress (Pressure Rating)
16700 16700 16700 15500 14400
1" 40 0.133 1.315 2507 2507 2507 2047 1902
80 0.179 1.315 3061 3061 3061 2841 2640
160 0.250 1.315 4493 4493 4493 4170 3874
1 1/2" 40 0.145 1.900 1629 1629 1629 1512 1404
80 0.200 1.900 2303 2303 2303 2138 1986
160 0.281 1.900 3362 3362 3362 3120 2899
2" 40 0.154 2.375 1371 1371 1371 1272 1182
80 0.218 2.375 1985 1985 1985 1843 1712
160 0.344 2.375 3283 3283 3283 3047 2831
3" 40 0.216 3.500 1301 1301 1301 1208 1122
80 0.300 3.500 1844 1844 1844 1712 1590
160 0.438 3.500 2787 2787 2787 2587 2403
4" 40 0.237 4.500 1102 1102 1102 1023 950
80 0.337 4.500 1596 1596 1596 1482 1377
160 0.531 4.500 2611 2611 2611 2424 2552
5" 40 0.258 5.563 965 965 965 896 832
80 0.375 5.563 1428 1428 1428 1325 1231
160 0.625 5.563 2474 2474 2474 2296 2133
6" 40 0.280 6.625 877 877 877 814 756
80 0.432 6.625 1379 1379 1379 1280 1189
160 0.719 6.625 2382 2382 2382 2211 2054
8" 40 0.322 8.625 771 771 771 716 665
80 0.500 8.625 1218 1218 1218 1131 1050
160 0.906 8.625 2298 2298 2298 2133 1982
10" 40 0.365 10.750 699 699 699 649 603
80 0.594 10.750 1159 1159 1159 1075 999
160 1.125 10.750 2289 2289 2289 2124 1974


AVAILABLE STOCK OF Super DUPLEX STEEL 2507 - UNS S32750 - F53 BUTTWELD FITTING:


Preview Products UNS DIN
Super Duplex S32750 Elbow Super Duplex S32750 Elbow
Super Duplex 2507 Elbow		 UNS S32750 Elbow 1.4410 Elbow
Super Duplex S32750 Tee Super Duplex S32750 Tee
Super Duplex 2507 Tee		 UNS S32750 Tee 1.4410 Tee
Super Duplex S32750 Cross Super Duplex S32750 Cross
Super Duplex 2507 Cross		 UNS S32750 Cross 1.4410 Cross
Super Duplex S32750 Reducer Super Duplex S32750 Reducer
Super Duplex 2507 Reducer		 UNS S32750 Reducer 1.4410 Reducer
Super Duplex S32750 Stub End Super Duplex S32750 Stub End
Super Duplex 2507 Stub End		 UNS S32750 Stub End 1.4410 Stub End


Equivalent Grades of Super Duplex Steel 2507 - UNS S32750 - F53 BUTTWELD FITTING :


STANDARD
WERKSTOFF NR.
UNS
Super Duplex Steel 2507
1.4410
S32507
Super Duplex Steel S32750
1.4410
S32750
Super Duplex Steel F53
1.4410
S32750


Chemical Composition of 2507 - UNS S32750 Super Duplex Buttweld Fitting:


UNS C % Cr % Ni % Mo % N % Mn % Cu % W S Si
S32750 < 0.03 24.0-26.0 6.0-8.0 3.0-5.0 0.24-0.32 < 1.20 < 0.5 - - -
2507 < 0.03 24.0-26.0 6.0-8.0 3.0-5.0 0.24-0.32 < 1.20 < 0.5 - - -
F53 < 0.03 24.0-26.0 6.0-8.0 3.0-5.0 0.24-0.32 < 1.20 < 0.5 - - -


Mechanical Properties of Super Duplex Steel 2507 - UNS S32750 - F53 BUTTWELD FITTING :


Grade YS (MPa) UTS (MPa) % Elongation Hardness(BHN)
UNS S32750 550 min. 795 min. 15 min. 310 max.
2507 550 min. 795 min. 15 min. 310 max.
F53 550 min. 795 min. 15 min. 310 max.


Super Duplex 2507 Price Per Kg (As per demand and manufacturer):


Super Duplex 2507 Fittings type Super Duplex 2507 Fittings Price in India Super Duplex 2507 Fittings Price in Saudi Riyal Super Duplex 2507 Fittings Price in UAE Dirham
Super Duplex 2507 REDUCER- ECCENTRIC BUTTWELD, ASME B16.9 price per kg INR 5,575 SAR 293.57 Saudi Riyal AED 295.31 UAE Dirham
Super Duplex 2507 Fittings price per kg INR 5,574 SAR 293.52 Saudi Riyal AED 295.26 UAE Dirham
Super Duplex 2507 ELBOW-45 DEGREE BUTTWELD, ASME B16.9 price per kg INR 5,545 SAR 292.00 Saudi Riyal AED 293.72 UAE Dirham
Super Duplex 2507 ELBOW-90 DEGREE BUTTWELD, ASME B16.9 price per kg INR 5,582 SAR 293.94 Saudi Riyal AED 295.68 UAE Dirham

SUPER DUPLEX STEEL S32750 BUTTWELD FITTING MECHANICAL PROPERTIES :

  • Super Duplex stainless steels exhibit PREN value higher than 40.
  • Combines most desirable characteristics of both super-ferritic and Super-Austenitic steel.
  • Has excellent resistance to chloride SCC, pitting, crevice and general corrosion and carbide related inter-granular corrosion.
  • Possesses high strength & impact strength.
  • Has high thermal conductivity and a lower coefficient of thermal expansion compared to Super Austenitic steels.

Fabricability :

  • Nearly twice the force is required to initiate plastic deformation compared to that required for AISI 304L and 316L.
  • Plastic deformation proceeds as easily as in Austenitic stainless steel beyond yield strength.
  • It can be cold bent to 25% deformation without requiring subsequent heat treatment.
  • Bending should be followed by annealing if the service conditions are prone to SCC.
  • Hot bending maybe carried out in the range 950-1100 deg C and should be followed by quench annealing.
  • Normal expanding methods can be used while expanding its tubes, but higher initial force is required and it should be completed in a single operation.

Weldability :

  • It is welded easily by Manual Metal Arc Welding (MMAW) using covered electrode, (GTAW), Gas Metal Arc Welding (GMAW).
  • Heat input should be in the range of 0.5-2.5k1/mm
  • Interpass temperature should be held to 150 deg C max.
  • Preheat or postweld heat treatment is normally not required.
  • Typical Filler metals are overalloyed with nickel like E2209.
  • Welding with carbon steels, other stainless steels and nickel alloys is readily achieved.

Corrosion Resistance :

  • Has better general corrosion resistance as compared to AISI 316L and 317L
  • Welded joints easily pass inter-granular corrosion testing as per ASTM A262 Practice E-Strauss Test.
  • Better resistance to pitting and crevice attack than 304 and 316 at higher temperatures and chloride contents.
  • The combined high strength, hardness and corrosion resistance provide 2507 with superior corrosion fatigue and erosion / corrosion resistance.
author
Duplex Steel 2507 /UNS S32750 - F53 BUTTWELD FITTINGs

Request the latest Duplex Steel S32750 Buttweld Fittings Price List. Please Call +91 98691 88888 or Send an Email to sales@duplexsteel.org for Duplex Steel UNS S32750, 1.4410 Buttweld Fittings Ready stock information and updated price list.

Testings (Destructive, Non Destructive):

  • Positive Material Identification - PMI Testing
  • Chemical Analysis - Spectro Analysis
  • Mechanical Testing Such as Tensile, Elongation, Reduction of Area
  • Micro Test
  • Macro Test
  • Hardness Test
  • Pitting Resistance Test
  • Intergranular Corrosion (IGC) Test
  • Flaring Test
  • Flattening Test
  • Hydrostatic Test
  • Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
  • Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
  • Radiography Test
  • Dye Penetrant Test (DP Test)
  • Ultra Sonic Test (UT)
  • Eddy Current Testing
  • Impact Test
  • Bend Test

Packing :

We DUPLEX STEEL & ENGINEERING Ensure the best quality of Packing, because its play important role especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put extraordinary concern regarding packaging.

We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as:--

  • Boxes and Crates
  • Shrink-wrapped
  • Carton boxes
  • Wooden pallets
  • Wooden boxes
  • Wooden crates

APPLICATION :

  • Oil and gas industry.
  • Petrochemical industries ( polymerization reactor cycle pumps and pipework)
  • Offshore platforms (heat exchangers, process and service water systems, fire-fighting systems, and injection and ballast water systems)
  • Chemical process industries (heat exchangers and vessels)
  • Desalination plants (high pressure RO-plant and seawater piping)
  • Fertilizers (Recirculation tanks, sedimentation tanks, phosphate reactor recirculation pumps)
  • Power industry FGD systems
  • Utility & industrial scrubber systems (absorber towers, ducting, piping)
  • Mining/ Extraction ( hot slurry pipe work, acid leach mining)
  • Sewage (critically important pipelines.)
  • Engineering applications (pressure vessels)

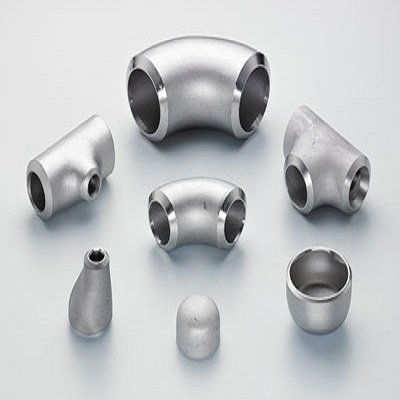

DUPLEX STEEL & ENGINEERING manufactures and exports ​Duplex Steel Pipe Fittings | UNS S32750 | S32507 Buttweld Fittings | Werkstoff Nr. 1.4410 Pipe Fittings​ to various countries such as Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Spain, France, United Kingdom, Indonesia, Israel, Iran, Russia, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia.

DUPLEX STEEL & ENGINEERING manufactures and exports ​Duplex Steel Pipe Fittings | UNS S32750 | S32507 Buttweld Fittings | Werkstoff Nr. 1.4410 Pipe Fittings to multiple cities such as Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gujarat, Gurgaon, Ahmedabad, Seoul, Hyderabad, Nashik , Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad,Gujarat, Houston, Dubai, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Howrah, Sydney, Ahvaz, Karachi, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo.
