STAINLESS STEEL 904L / 1.4539 PIPES / TUBE

PIPES / TUBES
Duplex Steel


Products

Download brochure

Here is some useful documents


Table of Contents :

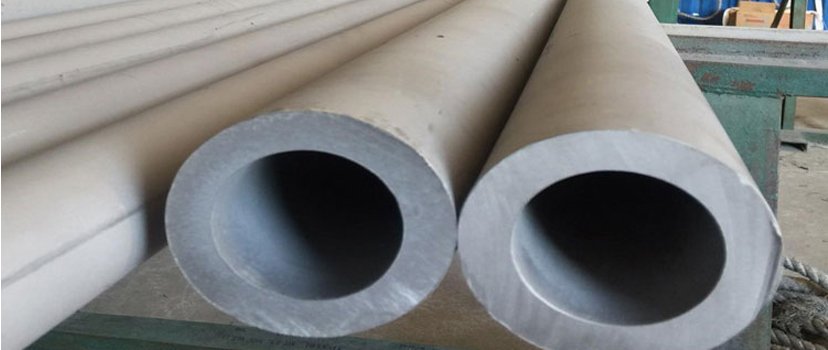

Stainless Steel 904L-pipe

904L Stainless Steel Pipes, WERKSTOFF NR. 1.4539 SS Pipes, ASTM B677 Stainless Steel 904L Pipe, 904L SS Seamless Pipes Manufacturers in Mumbai.

904L Stainless Steel Pipes which is a non - stabilized low carbon high alloy austenitic stainless steel. Stainless Steel 904L Seamless Pipes contains high amounts of expensive ingredients, such as molybdenum and nickel. The “L” in 904L stands for low carbon, i.e., only 0.03 percent or less. Grade 904L is also non-magnetic in all conditions, and has excellent machinability and weldability. SS UNS N08904 Seamless Pipes is a fully austenic low - carbon variety of stainless steel with additives of molybdenum and copper. We manufacture SS 904L Pipe has very good resistance to pitting corrosion, stress corrosion cracking and a much better resistance to crevice corrosion than steels of Grade 304L and Grade 316L.

The quality of SS 904L Rectangular Pipes made of stainless steel by us are in line with customer requirement and maintaining the customer satisfaction level along with various levels of quality testing and in line with the standards. These SS 904L pipes widly used in application such as Oil & Gas, Refineries, Fertilizers, Heat-Exchangers, Paper & Pulp, Pharmaceuticals, Chemicals, Water Treatment, Dairy, Sugar & Food Processing, Construction, Mining, Shipbuilding, Offshore, Defence, Ports, Railway, Nuclear Power, Power Plant, Oil Mills etc. These SS 904L ,UNS N08904 pipes are available in different form Stainless Steel 904L Pipes Stainless, Steel 904L Seamless Pipes, Stainless Steel 904L Welded Pipes, Stainless Steel 904L EFW Pipes, Stainless Steel 904L ERW Pipes, Stainless Steel 904L Round Pipes, Stainless Steel 904L Square Pipes, Stainless Steel 904L Rectangular Pipes, Stainless Steel 904L Electropolish Pipes. etc.


Key CHARACTERISTIC :-

  • Excellent resistance to warm seawater and chloride attack. The high resistance against stress corrosion cracking is due to the presence of high amounts of nickel in its composition.
  • Less resistant to nitric acid than grades 304L and 310L, which are free of molybdenum.
  • Grade 904L stainless steel pipes offer good oxidation resistance.
  • Grade 904L stainless steel pipes can be heat-treated at 1090 to 1175°C, following by rapid cooling.
  • Welding can be performed using all conventional methods.
  • This grade can be bent to a small radius in cold environments.

SPECIFICATIONS of Stainless Steel 904L PIPES / TUBE :


Grade Stainless Steel 904L / SS TP 904L
Size 1/2" NB TO 24"
Standard ASTM A / ASME SA213 / A249 / A269 / A312 / A358 CL. I to V ASTM A789 / A790
Steel ERW 904L Pipes 1/2" NB - 24" NB
Steel EFW 904L Pipes 6" NB - 100" NB
Form Round, Square, Rectangular, Hydraulic Etc
Schedule SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Length Single Random, Double Random & Cut Length. (Custom Sizes Available as per customers requirement)
Type Seamless / ERW / Welded / Fabricated / EFW
End Plain End, Beveled End, Treaded

SS UNS N08904 Seamless Pipe, DIN 1.4539 SS Pipes, Stainless Steel 904L Cold Drawn Pipes Stockholder, SS 904L Pipe Suppliers In India.


TYPE of Stainless Steel 904L PIPES / TUBE:

PIPES
  • Stainless Steel 904L Pipes
  • UNS N08904 Pipes
  • Werkstoff Nr. 1.4539 Pipes
  • JIS SUS 904L Pipes
  • ASTM A673 SS 904L Pipes
  • ASTM A312 Stainless Steel 904L Pipes
  • ASME S673 Stainless Steel 904L Pipes
IBR PIPES
  • Stainless Steel 904L IBR Pipes
  • UNS N08904 IBR Pipes
  • Werkstoff Nr. 1.4539 IBR Pipes
  • JIS SUS 904L IBR Pipes
  • ASTM A673 SS 904L IBR Pipes
  • ASTM A312 Stainless Steel 904L IBR Pipes
  • ASME S673 Stainless Steel 904L IBR Pipes
FABRICATED PIPES
  • Stainless Steel 904L Fabricated Pipes
  • UNS N08904 Fabricated Pipes
  • Werkstoff Nr. 1.4539 Fabricated Pipes
  • JIS SUS 904L Fabricated Pipes
  • ASTM A673 SS 904L Fabricated Pipes
  • ASTM A312 Stainless Steel 904L Fabricated Pipes
  • ASME S673 Stainless Steel 904L Fabricated Pipes
WELDED PIPES
  • Stainless Steel 904L Welded Pipes
  • UNS N08904 Welded Pipes
  • Werkstoff Nr. 1.4539 Welded Pipes
  • JIS SUS 904L Welded Pipes
  • ASTM A673 SS 904L Welded Pipes
  • ASTM A312 Stainless Steel 904L Welded Pipes
  • ASME S673 Stainless Steel 904L Welded Pipes
TUBES
  • Stainless Steel 904L Tubes
  • UNS N08904 Tubes
  • Werkstoff Nr. 1.4539 Tubes
  • JIS SUS 904L Tubes
  • ASTM A673 SS 904L Tubes
  • ASTM A312 Stainless Steel 904L Tubes
  • ASME S673 Stainless Steel 904L Tubes
SEAMLESS TUBES
  • Stainless Steel 904L Seamless Tubes
  • UNS N08904 Seamless Tubes
  • Werkstoff Nr. 1.4539 Seamless Tubes
  • JIS SUS 904L Seamless Tubes
  • ASTM A673 SS 904L Seamless Tubes
  • ASTM A312 Stainless Steel 904L Seamless Tubes
  • ASME S673 Stainless Steel 904L Seamless Tubes
ERW BOILER TUBES
  • Stainless Steel 904L ERW Boiler Tubes
  • UNS N08904 ERW Boiler Tubes
  • Werkstoff Nr. 1.4539 ERW Boiler Tubes
  • JIS SUS 904L ERW Boiler Tubes
  • ASTM A673 SS 904L ERW Boiler Tubes
  • ASTM A312 Stainless Steel 904L ERW Boiler Tubes
  • ASME S673 Stainless Steel 904L ERW Boiler Tubes
CDW BOILER TUBES
  • Stainless Steel 904L CDW Boiler Tubes
  • UNS N08904 CDW Boiler Tubes
  • Werkstoff Nr. 1.4539 CDW Boiler Tubes
  • JIS SUS 904L CDW Boiler Tubes
  • ASTM A673 SS 904L CDW Boiler Tubes
  • ASTM A312 Stainless Steel 904L CDW Boiler Tubes
  • ASME S673 Stainless Steel 904L CDW Boiler Tubes
Air Heater Tubes
  • Stainless Steel 904L Air Heater Tubes
  • UNS N08904 Air Heater Tubes
  • Werkstoff Nr. 1.4539 Air Heater Tubes
  • JIS SUS 904L Air Heater Tubes
  • ASTM A673 SS 904L Air Heater Tubes
  • ASTM A312 Stainless Steel 904L Air Heater Tubes
  • ASME S673 Stainless Steel 904L Air Heater Tubes
Round Pipe / Tube
  • Stainless Steel 904L Round Pipe / Tube
  • UNS N08904 Round Pipe / Tube
  • Werkstoff Nr. 1.4539 Round Pipe / Tube
  • JIS SUS 904L Round Pipe / Tube
  • ASTM A673 SS 904L Round Pipe / Tube
  • ASTM A312 Stainless Steel 904L Round Pipe / Tube
  • ASME S673 Stainless Steel 904L Round Pipe / Tube
Square Pipe / Tube
  • Stainless Steel 904L Square Pipe / Tube
  • UNS N08904 Square Pipe / Tube
  • Werkstoff Nr. 1.4539 Square Pipe / Tube
  • JIS SUS 904L Square Pipe / Tube
  • ASTM A673 SS 904L Square Pipe / Tube
  • ASTM A312 Stainless Steel 904L Square Pipe / Tube
  • ASME S673 Stainless Steel 904L Square Pipe / Tube
Rectangular Pipe / Tube
  • Stainless Steel 904L Rectangular Pipe / Tube
  • UNS N08904 Rectangular Pipe / Tube
  • Werkstoff Nr. 1.4539 Rectangular Pipe / Tube
  • JIS SUS 904L Rectangular Pipe / Tube
  • ASTM A673 SS 904L Rectangular Pipe / Tube
  • ASTM A312 Stainless Steel 904L Rectangular Pipe / Tube
  • ASME S673 Stainless Steel 904L Rectangular Pipe / Tube


Dimensions of Stainless Steel 904L Pipe / TUBES:


Stainless Steel 904L-pipe-dimensions
Nominal pipe Size(NPS) Outside     Diameter Nominal Wall Thickness
    Sch5s SCH10S Sch20 Sch30 Sch40 STD Sch80 XS Sch160 XXS
8  1/4 13.7 0.54 – 1.65 – 1.85 2.24 2.24 3.02 3.02 – –
10  3/8 17.1 0.675 – 1.65 – 1.85 2.31 2.31 3.20 3.20 – –
15  1/2 21.3 0.84 1.65 2.11 – 2.41 2.77 2.77 3.73 3.73 4.78 7.47
20  3/4 26.7 1.05 1.65 2.11 – 2.41 2.87 2.87 3.91 3.91 5.56 7.82
25 1 33.4 1.32 1.65 2.77 – 2.90 3.38 3.38 4.55 4.55 6.35 9.09
32 1.1/4 42.2 1.66 1.65 2.77 – 2.97 3.56 3.56 4.85 4.85 6.35 9.70
40 1.1/2 48.3 1.90 1.65 2.77 – 3.18 3.68 3.68 5.08 5.08 7.14 10.15
50 2 60.3 2.38 1.65 2.77 – 3.18 3.91 3.91 5.54 5.54 8.74 11.07
65 2.1/2 73.0 2.88 2.11 3.05 – 4.78 5.16 5.16 7.01 7.01 9.53 14.02
80 3 88.9 3.50 2.11 3.05 – 4.78 5.49 5.49 7.62 7.62 11.13 15.24
90 3.1/2 101.6 4.00 2.11 3.05 – 4.78 5.74 5.74 8.08 8.08 – –
100 4 114.3 4.50 2.11 3.05 – 4.78 6.02 6.02 8.56 8.56 13.49 17.12
125 5 141.3 5.56 2.77 3.40 – – 6.55 6.55 9.53 9.53 15.88 19.05
150 6 168.3 6.62 2.77 3.40 – – 7.11 7.11 10.97 10.97 18.26 21.96
200 8 219.1 8.62 2.77 3.76 6.35 7.04 8.18 8.18 12.70 12.70 23.01 22.23
250 10 273.0 10.75 3.40 4.19 6.35 7.80 9.27 9.27 15.09 12.70 28.58 25.40
300 12 323.8 12.75 3.96 4.57 6.35 8.38 10.13 9.53 17.48 12.70 33.32 25.40
350 14 355.6 14 3.96 4.78 7.92 9.53 11.13 9.53 19.05 12.70 35.71 –
400 16 406.4 16 4.19 4.78 7.92 9.53 12.70 9.53 21.44 12.70 40.49 –
450 18 457 18 4.19 4.78 7.92 11.13 14.27 9.53 23.83 12.70 45.24 –
500 10 508 20 4.78 5.54 9.53 12.70 15.09 9.53 26.19 12.70 50.01 –
550 22 559 22 4.78 5.54 9.53 12.70 – 9.53 28.58 12.70 53.98 –
600 24 610 24 5.54 6.35 9.53 14.27 17.48 9.53 30.96 12.70 59.54 –
650 *26 660 26 – – – – – 9.53 – 12.70 – –
700 *28 711 28 – – – – – 9.53 – 12.70 – –
750 *30 762 30 – – – – – 9.53 – 12.70 – –
800 *32 813 32 – – – – – 9.53 – 12.70 – –


Size range of Stainless Steel 904L Pipe :


OD = Stainless Steel 904L Pipe outside diameter
WT = Stainless Steel 904L Pipe wall thickness

Pipe Size
(in)		 Diameter
(in)
MM
 Nominal Thickness
(in)
MM		 Transverse Areas
(in2)
MM2		 Length of Pipe
(ft per sq. foot of surface)		 Volume
(ft3/ft)		 Weight Number of Threads per inch of Screw
External Internal External Internal Steel External Surface
(ft)		 Internal Surface
(ft)		 (lb/ft) (kg/m)
1/8 0.405 0.27 0.07 0.13 0.06 0.07 9.43 14.20 0.0004 0.24 0.36 27
¼ 0.540 0.36 0.09 0.23 0.10 0.13 7.07 10.49 0.0007 0.42 0.63 18
3/8 0.675 0.49 0.09 0.36 0.19 0.17 5.66 7.75 0.0013 0.57 0.84 18
½ 0.840 0.62 0.11 0.55 0.30 0.25 4.55 6.14 0.0021 0.85 1.26 14
¾ 1.050 0.82 0.11 0.87 0.53 0.33 3.64 4.64 0.0037 1.13 1.68 14
1 1.315 1.05 0.13 1.36 0.86 0.49 2.90 3.64 0.0060 1.68 2.50 11 ½
1 ¼ 1.660 1.38 0.14 2.16 1.50 0.67 2.30 2.77 0.0104 2.27 3.38 11 ½
1 ½ 1.900 1.61 0.15 2.84 2.04 0.80 2.01 2.37 0.0141 2.72 4.04 11 ½
2 2.375 2.07 0.15 4.43 3.36 1.08 1.61 1.85 0.0233 3.65 5.43 11 ½
2 ½ 2.875 2.47 0.20 6.49 4.79 1.70 1.33 1.55 0.0333 5.79 8.62 8
3 3.500 3.07 0.22 9.62 7.39 2.23 1.09 1.25 0.0513 7.58 11.27 8
3 ½ 4.000 3.55 0.23 12.56 9.89 2.68 0.95 1.08 0.0687 9.11 13.56 8
4 4.500 4.03 0.24 15.90 12.73 3.17 0.85 0.95 0.0884 10.79 16.06 8
5 5.563 5.05 0.26 24.30 20.00 4.30 0.69 0.76 0.1389 14.61 21.74 8
6 6.625 6.07 0.28 34.47 28.89 5.58 0.58 0.63 0.2006 18.97 28.23 8
8 8.625 7.98 0.32 58.42 50.02 8.40 0.44 0.48 0.3552 28.55 42.49 8
10 10.750 10.02 0.37 90.76 78.85 11.90 0.36 0.38 0.5476 40.48 60.24 8
12 12.750 11.94 0.41 127.64 111.90 15.74 0.30 0.32 0.7763 53.60 79.77 8
14 14.000 13.13 0.44 153.94 135.30 18.64 0.27 0.28 0.9354 63.00 93.75 8
16 16.000 15.00 0.50 201.05 176.70 24.35 0.24 0.25 1.2230 78.00 116.08 8
18 18.000 16.88 0.56 254.85 224.00 30.85 0.21 0.23 1.5550 105.00 156.26 8
20 20.000 18.81 0.59 314.15 278.00 36.15 0.19 0.20 1.9260 123.00 183.05 8
24 24.000 22.63 0.69 452.40 402.10 50.30 0.16 0.17 2.7930 171.00 254.48 8


AVAILABLE STOCK OF Stainless Steel 904L PIPES / TUBE :


Preview Products UNS DIN
Stainless Steel 904L Seamless Pipe Stainless Steel 904L Seamless Pipe
Stainless Steel 904L Seamless Tubes 		UNS N08904 Seamless Pipe
UNS N08904 Seamless Tubes		 1.4539 Seamless Pipe
1.4539 Seamless Tube
Stainless Steel 904L Welded Pipe Stainless Steel 904L Welded Pipe
Stainless Steel 904L Welded Tube 		UNS N08904 Welded Pipe
UNS N08904 Welded Tubes		 1.4539 Welded Pipe
1.4539 Welded Tube
Stainless Steel 904L EFW Pipe Stainless Steel 904L EFW Pipe UNS N08904 EFW Pipe 1.4539 EFW Pipe
Stainless Steel 904L ERW Pipe Stainless Steel 904L ERW Pipe UNS N08904 ERW Pipe 1.4539 ERW Pipe
Stainless Steel 904L ERW Pipe Stainless Steel 904L Round Tube UNS N08904 Round Tubes 1.4539 Round Tubing


Equivalent Grades of Stainless Steel 904L PIPES / TUBE :


STANDARD WERKSTOFF NR. UNS JIS BS KS AFNOR EN
SS 904L 1.4539 N08904 SUS 904L 904S13 STS 317J5L Z2 NCDU 25-20 X1NiCrMoCu25-20-5


Chemical Composition of 2205 - Duplex PIPES / TUBE :


Grade C Mn Si P S Cr Mo Ni Cu
SS 904L 0.020 max 2.00 max 1.00 max 0.040 max 0.030 max 19.00 – 23.00 4.00 – 5.00 max 23.00 – 28.00 1.00 – 2.00


Mechanical Properties of Stainless Steel 904L PIPES/ TUBE :


Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
7.95 g/cm3 1350 °C (2460 °F) Psi – 71000 , MPa – 490 Psi – 32000 , MPa – 220 35 %


Stainless Steel 904L PIPES / TUBES Price Per Kg (As per demand and manufacturer):


Description Price Per Unit (INR)
Pipe Stainless Steel 904L 8x1 (For Captive Use Only) 16,034
90nos Of Steel 904L Pipe Cold Drawn, pickled Annealed(Nickel Pipes) 1,784
90nos Of Steel 904L Pipe Cold Drawn, pickled Annealed(Nickel Pipes) 1,784
90nos Of Steel 904L Pipe Cold Drawn, pickled Annealed(Nickel Pipes) 1,784
Pipes Grade Stainless Steel 904L 557


author
Stainless Steel 904L PIPES/ TUBE

Request the latest Stainless Steel 904L PIPES/ TUBE Price List. Please Call +91 98691 88888 or Send an Email to sales@duplexsteel.org for Stainless Steel 904L, 1.4539 Pipe / Tube Plates / Sheets / Coil Ready stock information and updated price list.

Testings (Destructive, Non Destructive):

  • Positive Material Identification - PMI Testing
  • Chemical Analysis - Spectro Analysis
  • Mechanical Testing Such as Tensile, Elongation, Reduction of Area
  • Micro Test
  • Macro Test
  • Hardness Test
  • Pitting Resistance Test
  • Intergranular Corrosion (IGC) Test
  • Flaring Test
  • Flattening Test
  • Hydrostatic Test
  • Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
  • Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
  • Radiography Test
  • Dye Penetrant Test (DP Test)
  • Ultra Sonic Test (UT)
  • Eddy Current Testing
  • Impact Test
  • Bend Test

Packing :

We DUPLEX STEEL & ENGINEERING Ensure the best quality of Packing, because its play important role especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put extraordinary concern regarding packaging.

We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as:--

  • Boxes and Crates
  • Shrink-wrapped
  • Carton boxes
  • Wooden pallets
  • Wooden boxes
  • Wooden crates

APPLICATION :

  • Chemical tanks
  • Pulp & Paper Industries
  • Petrochemical Industries
  • Power Generation Industries
  • Oil & Gas Industries
  • Desalination
  • Architecture and Construction
  • Food Processing Equipment
  • Biofuels plant
  • Cargo tanks for ships and trucks
  • Chemical Industries Pumps, fans, centrifuges, sulphur melting coils,
  • Digester in sulphate and sulfite plants, blow tanks, blow lines

DUPLEX STEEL & ENGINEERING manufactures and exports ​Stainless Steel 304 Pipes​ to various countries such as Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Spain, France, United Kingdom, Indonesia, Israel, Iran, Russia, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia.

DUPLEX STEEL & ENGINEERING manufactures and exports ​Stainless Steel 304 Pipes to multiple cities such as Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gujarat, Gurgaon, Ahmedabad, Seoul, Hyderabad, Nashik , Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad,Gujarat, Houston, Dubai, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Howrah, Sydney, Ahvaz, Karachi, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo.
