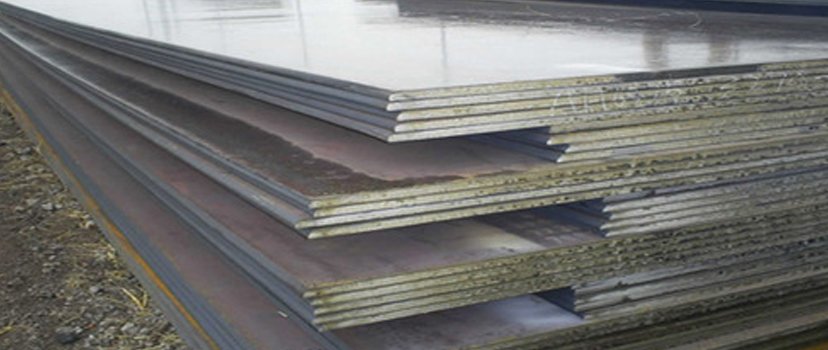

SA 387 GR 11 PLATE

SA 387 GR 11  PLATE

Unisteel and Engineering is one of the outstanding dealer and provider of Alloy Steel SA 387 Gr. 11 Sheets Plates Coils, which is utilized by fabricators who serve the oil, gas and petrochemical industry. The costs that we offer Alloy Steel SA 387 Grade 11 Plates is the least one can expect and its quality part is just lovely which say a lot of the absolute dimensional precision of the item. Compound Steel Grade 11 Coils is frequently utilised in Transformers, Heat Exchangers, Oil Refineries, Brine Heaters, Space Research, Steel industry, Engineering ventures, General Piping Industry, and so forth. The offered Alloy Steel SA 387 Grade 11 Slatting Coils are made from the best quality material and driving systems as per the set standards of industry. Amalgam Steel Grade 11 Perforated Coils are vigorously requested all through the market, and known for properties like toughness, amazing execution and simplicity of support. We are noticeable maker, exporter and stockiest of Alloy Steel SA 387 Gr. 11 Plates to our regarded customers, which are broadly utilized everywhere for shifted purposes. We offer different kinds of Alloy Steel Gr. 11 Coils to our mechanical clients, all with a base 99.9 % virtue. Combination Steel SA 387 Gr. 11 Slatting Coils has some incredible highlights to offer, for example, Long life, Corrosion opposition, Permanence in nature and then some. We at Unisteel and Engineering Believe in Offering Prime/Genuine Materials Accompanied with Prompt and Personalized Services.

Alloy steel Steel SA 387 Gr. 11 Sheets Plate and Sheets we offer stunning, lower cost yet the best organisation. Appropriately to that our admission account today is in various countries like Egypt, South America Saudi arabia, Thailand,Kuwait,Kazakhstan, Qatar, Oman, Yemen, UAE, Iran, Turkey, Greece, Singapore, Indonesia, Vietnam, South Africa,Brazil, India, Australia.

SPECIFICATIONS of SA 387 GR 11 PLATE :


Width : 1000mm-4500mm
Thickness : 0.1mm To 100 mm
Length : 3000mm-18000mm
Supply Condition : As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement.
Impact tested : -52° C
Process of Manufacturing : Hot-Rolled (HR)

A387 Grade 11 Cl 1/2 Steel Plate Equivalent Standard : :


BS EN ASTM/ASME DIN
621B - A387 / SA 387 -

Alloy Steel ASTM A387 GR 11 CL. 1 / 2 Plates Chemical Composition :


C Mn P S Si Cr Mo
0.15 max 0.25 - 0.66 0.035 0.030 0.55 max 3.9 - 6.1 0.40 - 0.7

Alloy steel ASME SA387 GR. 11 CL. 1/ 2 Plates Mechanical Properties :


A387 / SA387 Grade 11 Class 1 Class 2
Tensile Strength (ksi) 60-85 75-100
Tensile Strength (MPa) 415-585 515-690
Yield Strength (ksi) 35 45
Yield Strength (MPa) 240 310
Elongation in 200mm (%) 19 18
Elongation in 50mm (%) 22 22
Reduction of area in % - -


SA 387 GR 11 PLATE Price (As per demand and manufacturer):


SA 387 GR 11 PLATE Price
SSAB SA 387 GR 11 PLATE Wear Resistant Steel Plate price ₹ 39,364.00-₹ 50,099.63 / Ton
Top quality SA 387 GR 11 PLATE Wear Resistant Steel Plate ₹ 42,870.97-₹ 1,21,598.96 / Ton
price SA 387 GR 11 PLATE price ₹ 42,870.97-₹ 1,21,598.96 / Ton
SA 387 GR 11 PLATE Wear Steel Plate ₹ 42,870.97-₹ 1,21,598.96 / Ton
Hot rolled SA 387 GR 11 PLATE Wear Resistant Steel Plate ₹ 1,04,493.52-₹ 1,14,513.44 / Ton
Best Price SA 387 GR 11 PLATE Steel Plate ₹ 42,870.97-₹ 1,21,598.96 / Ton
SA 387 GR 11 PLATE Wear Resistant Steel Plate/Sheet Price per kg ₹ 42,942.54-₹ 71,570.90 / Ton
Manganese wear resistant steel plate SA 387 GR 11 PLATE ₹ 42,942.54-₹ 53,678.18 / Ton
Wear plate high quality SA 387 GR 11 PLATE ₹ 1,00,199.26-₹ 1,28,827.62 / Ton


Testings (Destructive, Non Destructive):

  • Positive Material Identification - PMI Testing
  • Chemical Analysis - Spectro Analysis
  • Mechanical Testing Such as Tensile, Elongation, Reduction of Area
  • Micro Test
  • Macro Test
  • Hardness Test
  • Pitting Resistance Test
  • Intergranular Corrosion (IGC) Test
  • Flaring Test
  • Flattening Test
  • Hydrostatic Test
  • Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
  • Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
  • Radiography Test
  • Dye Penetrant Test (DP Test)
  • Ultra Sonic Test (UT)
  • Eddy Current Testing
  • Impact Test
  • Bend Test

Packing :

We DUPLEX STEEL & ENGINEERING Ensure the best quality of Packing, because its play important role especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put extraordinary concern regarding packaging.

We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as:--

  • Boxes and Crates
  • Shrink-wrapped
  • Carton boxes
  • Wooden pallets
  • Wooden boxes
  • Wooden crates

APPLICATION :

  • Chemical tanks
  • Pulp & Paper Industries
  • Petrochemical Industries
  • Power Generation Industries
  • Oil & Gas Industries
  • Desalination
  • Architecture and Construction
  • Food Processing Equipment
  • Biofuels plant
  • Cargo tanks for ships and trucks
  • Chemical Industries Pumps, fans, centrifuges, sulphur melting coils,
  • Digester in sulphate and sulfite plants, blow tanks, blow lines
