Alloy Steel F21 FORGED-FITTING

Forged-Fitting
Duplex Steel


Products

Download brochure

Here is some useful documents


Table of Contents :

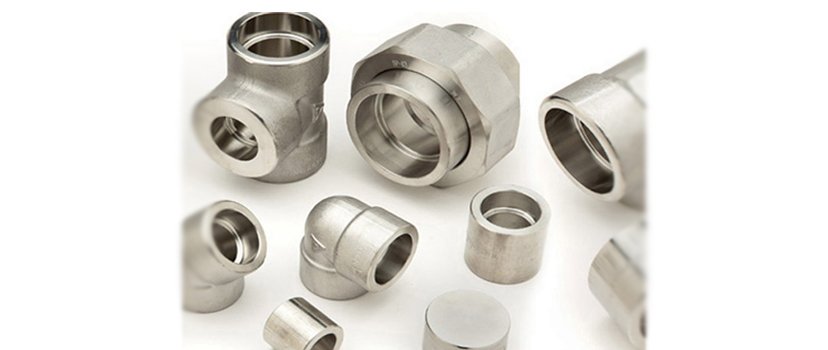

Alloy Steel F21-Forged Fitting

We are manufacturer of Alloy Steel WP 5 Butt weld Pipe Fittings that are made available in varied sizes. We are affianced in providing a wide gamut of Alloy Steel F21 Butt weld Pipe Fittings to the clients. DUPLEX STEEL & ENGINEERING one of the leading manufacturer, exporter and supplier of Alloy Steel ASTM A234 WP5 Butt weld Pipe Fittings in India.

Alloy Steel F21 Seamless Fitting and Alloy WP5 Welded Fitting grades of Alloy WP5 fitting exhibit good machinability and have excellent weld-ability characteristics with or without the addition of filler metals. These Alloy Steel F21 Forged Fitting are available in different form 90 Elbow, 45 Elbow, Long Radius Elbow, Short Radius Elbow, Bends 1.5d, 3d, 5d, 10d, 180 Deg Bend, U bend, Concentric Reducer, Eccentric Reducer, Cross, Short Stub End, Long stub end, End Cap, Dish Cap, Equal Tee, Unequal Tee, Lateral Tee, etc.

SPECIFICATIONS of Alloy Steel F21 FORGED FITTING :


Grade Alloy Steel F21 | UNS K41545
Standard ASTM A234, ASME SA234
Dimensions ASME B16.28, ASME/ANSI B16.9, MSS-SP-43
Alloy Steel F21 Fittings 1/8" NB - 48" NB
Form 90 Elbow, 45 Elbow, Long Radius Elbow, Short Radius Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Unequal Tee, Lateral Tee, Cross, Bends 1.5d, 3d, 5d, 10d, U bend, 180 Deg Bend, Short Stub End, Long stub end, End Cap, Dish Cap
Schedule SCH 5 To SCH XXS
Thickness 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS, Custom Thickness.
Type Seamless / Welded / Fabricated

TYPE of Alloy Steel F21 FORGED FITTING :

Elbow
  • Alloy Steel F21 Elbow
  • UNS K41545 Elbow
  • Werkstoff Nr. 1.7380 Elbow
  • DIN 10CRM0910 Elbow
  • ASTM A182 Alloy Steel F21 Elbow
  • ASTM A182 Alloy Steel F22 Elbow
  • ASME SA182 Alloy Steel F91 Elbow
Tee
  • Alloy Steel F21 Tee
  • UNS K41545 Tee
  • Werkstoff Nr. 1.7380 Tee
  • DIN 10CRM0910 Tee
  • ASTM A182 Alloy Steel F21 Tee
  • ASTM A182 Alloy Steel F22 Tee
  • ASME SA182 Alloy Steel F91 Tee
Union
  • Alloy Steel F21 Union
  • UNS K41545 Union
  • Werkstoff Nr. 1.7380 Union
  • DIN 10CRM0910 Union
  • ASTM A182 Alloy Steel F21 Union
  • ASTM A182 Alloy Steel F22 Union
  • ASME SA182 Alloy Steel F91 Union
Cross
  • Alloy Steel F21 Cross
  • UNS K41545 Cross
  • Werkstoff Nr. 1.7380 Cross
  • DIN 10CRM0910 Cross
  • ASTM A182 Alloy Steel F21 Cross
  • ASTM A182 Alloy Steel F22 Cross
  • ASME SA182 Alloy Steel F91 Cross
CAP
  • Alloy Steel F21 CAP
  • UNS K41545 CAP
  • Werkstoff Nr. 1.7380 CAP
  • DIN 10CRM0910 CAP
  • ASTM A182 Alloy Steel F21 CAP
  • ASTM A182 Alloy Steel F22 CAP
  • ASME SA182 Alloy Steel F91 CAP
Plug
  • Alloy Steel F21 Plug
  • UNS K41545 Plug
  • Werkstoff Nr. 1.7380 Plug
  • DIN 10CRM0910 Plug
  • ASTM A182 Alloy Steel F21 Plug
  • ASTM A182 Alloy Steel F22 Plug
  • ASME SA182 Alloy Steel F91 Plug
Bush
  • Alloy Steel F21 Bush
  • UNS K41545 Bush
  • Werkstoff Nr. 1.7380 Bush
  • DIN 10CRM0910 Bush
  • ASTM A182 Alloy Steel F21 Bush
  • ASTM A182 Alloy Steel F22 Bush
  • ASME SA182 Alloy Steel F91 Bush
Sokolet
  • Alloy Steel F21 Sokolet
  • UNS K41545 Sokolet
  • Werkstoff Nr. 1.7380 Sokolet
  • DIN 10CRM0910 Sokolet
  • ASTM A182 Alloy Steel F21 Sokolet
  • ASTM A182 Alloy Steel F22 Sokolet
  • ASME SA182 Alloy Steel F91 Sokolet
Weldolet
  • Alloy Steel F21 Weldolet
  • UNS K41545 Weldolet
  • Werkstoff Nr. 1.7380 Weldolet
  • DIN 10CRM0910 Weldolet
  • ASTM A182 Alloy Steel F21 Weldolet
  • ASTM A182 Alloy Steel F22 Weldolet
  • ASME SA182 Alloy Steel F91 Weldolet
Thredolet
  • Alloy Steel F21 Thredolet
  • UNS K41545 Thredolet
  • Werkstoff Nr. 1.7380 Thredolet
  • DIN 10CRM0910 Thredolet
  • ASTM A182 Alloy Steel F21 Thredolet
  • ASTM A182 Alloy Steel F22 Thredolet
  • ASME SA182 Alloy Steel F91 Thredolet
Elbolet
  • Alloy Steel F21 Elbolet
  • UNS K41545 Elbolet
  • Werkstoff Nr. 1.7380 Elbolet
  • DIN 10CRM0910 Elbolet
  • ASTM A182 Alloy Steel F21 Elbolet
  • ASTM A182 Alloy Steel F22 Elbolet
  • ASME SA182 Alloy Steel F91 Elbolet
Nipolet
  • Alloy Steel F21 Nipolet
  • UNS K41545 Nipolet
  • Werkstoff Nr. 1.7380 Nipolet
  • DIN 10CRM0910 Nipolet
  • ASTM A182 Alloy Steel F21 Nipolet
  • ASTM A182 Alloy Steel F22 Nipolet
  • ASME SA182 Alloy Steel F91 Nipolet
Swage Nipples Coupling
  • Alloy Steel F21 Swage Nipples Coupling
  • UNS K41545 Swage Nipples Coupling
  • Werkstoff Nr. 1.7380 Swage Nipples Coupling
  • DIN 10CRM0910 Swage Nipples Coupling
  • ASTM A182 Alloy Steel F21 Swage Nipples Coupling
  • ASTM A182 Alloy Steel F22 Swage Nipples Coupling
  • ASME SA182 Alloy Steel F91 Swage Nipples Coupling
IBR Fitting
  • Alloy Steel F21 IBR Fitting
  • UNS K41545 IBR Fitting
  • Werkstoff Nr. 1.7380 IBR Fitting
  • DIN 10CRM0910 IBR Fitting
  • ASTM A182 Alloy Steel F21 IBR Fitting
  • ASTM A182 Alloy Steel F22 IBR Fitting
  • ASME SA182 Alloy Steel F91 IBR Fitting
S/W & SCRD
  • Alloy Steel F21 S/W & SCRD
  • UNS K41545 S/W & SCRD
  • Werkstoff Nr. 1.7380 S/W & SCRD
  • DIN 10CRM0910 S/W & SCRD
  • ASTM A182 Alloy Steel F21 S/W & SCRD
  • ASTM A182 Alloy Steel F22 S/W & SCRD
  • ASME SA182 Alloy Steel F91 S/W & SCRD


Dimensions of Alloy Steel F21 FORGED FITTING :

Alloy Steel F21-forged-fitting-dimensions
ASME b16.9 Fittings
Normal Pipe Size		 ANSI b16 9 Pipe Fitting O
D Y		 Wall Thickness T
(Pipe Elbow Sch.)		 LR 45 Deg Elbows Centre to Face B SR 45 Deg Elbows
Weight		 LR 90 Deg Elbows Centre to Face A LR 90 Deg Elbows Weight In Below SR 90 Deg Elbows Centre to Face A SR 90 Deg Elbows Weight In Below
millimeter inch. millimeter millimeter Schedule millimeter kilogram millimeter kilogram millimeter kilogram
15 1/2” 21.3 2.78 STD 15.9 0.04 38.1 0.08 – –
3.73 X.S 15.9 0.05 38.1 0.10 – –
20 3/4” 26.7 2.87 STD 11.1 0.04 28.6 0.08 – –
3.91 X.S 11.1 0.05 28.6 0.11 – –
25 1” 33.4 3.38 STD 22.2 0.09 38.1 0.15 25.4 0.11
4.55 X.S 22.2 0.11 38.1 0.19 25.4 0.14
32 11/4” 42.2 3.56 STD 25.4 0.14 47.6 0.28 31.75 0.18
4.85 X.S 25.4 0.2 47.6 0.39 31.75 0.24
40 11/2” 48.3 3.68 STD 28.6 0.2 57.1 0.4 38.1 0.26
5.08 X.S 28.6 0.25 57.1 0.5 38.1 0.35
50 2” 60.3 3.91 STD 34.9 0.36 76.2 0.72 50.8 0.5
5.54 X.S 34.9 0.5 76.2 1.0 50.8 0.68
65 21/2” 73.0 5.16 STD 44.4 0.73 95.2 1.46 63.5 0.95
7.01 X.S 44.4 0.91 95.2 1.82 63.5 1.27
80 3” 88.9 5.49 STD 50.8 1.1 114.3 2.18 76.2 1.45
7.62 X.S 50.8 1.45 114.3 2.86 76.2 1.95
100 4” 114.3 6.02 STD 63.5 2.1 152.4 4.2 101.6 2.8
8.56 X.S 63.5 2.9 152.4 5.7 101.6 3.9
125 5” 141.3 6.65 STD 79.4 3.4 190.0 6.8 127.0 4.8
9.5 X.S 79.4 5.0 190.0 10.0 127.0 6.5
150 6” 168.3 7.11 STD 95.2 5.1 229.0 10.1 152.4 6.8
10.97 X.S 95.2 7.7 229.0 15.3 152.4 10.2
200 8” 219.1 8.18 STD 127.0 10.2 305.0 20.4 203.0 13.6
12.7 X.S 127.0 15.5 305.0 30.9 203.0 20.9
250 10” 273.9 9.27 STD 159.0 18.1 381.0 36.1 254.0 24.1
12.7 X.S 159.0 24.4 381.0 48.8 254.0 32.5
300 12” 323.9 9.52 STD 190.0 26.6 457.0 53.1 305.0 35.4
12.7 X.S 190.0 35.0 457.0 70.0 305.0 46.7
350 14” 355.6 9.52 STD 222.0 34.1 533.0 68.1 356.0 45.4
12.7 X.S 222.0 45.0 533.0 90.0 356.0 60.0
400 16” 406.4 9.52 STD 254.0 45.0 610.0 89.3 406.0 59.5
12.7 X.S 254.0 59.0 610.0 118.0 406.0 78.7
450 18” 457.0 9.52 STD 286.0 56.5 686.0 113.0 457.0 75.6
12.7 X.S 286.0 75.0 686.0 150.0 457.0 100.0
500 20” 508.0 9.52 STD 318.0 85.0 762.0 140.0 508.0 93.5
12.7 X.S 318.0 112.5 762.0 186.0 508.0 124.0
600 24” 610.00 9.52 STD 381.0 101.5 914.0 203.0 610.0 135.0
12.7 X.S 381.0 134.5 914.0 269.0 610.0 179.0


SIZE of Alloy Steel F21 FORGED FITTING :


NPS
(inch)		 Pipe Schedule. OD
(inch)		 Wall
Thick.
(in)		 Temperature
Duplex Steel 100 Fitting Duplex Steel 200 Fitting Duplex Steel 300 Fitting Duplex Steel 400 Fitting Duplex Steel 500 Fitting
Allowable Stress
16700 16700 16700 15500 14400
1" 40 1.315 0.133 2205 2205 2205 2047 1902
80 1.315 0.179 3061 3061 3061 2841 2640
160 1.315 0.250 4493 4493 4493 4170 3874
1 1/2" 40 1.900 0.145 1629 1629 1629 1512 1404
80 1.900 0.200 2303 2303 2303 2138 1986
160 1.900 0.281 3362 3362 3362 3120 2899
2" 40 2.375 0.154 1371 1371 1371 1272 1182
80 2.375 0.218 1985 1985 1985 1843 1712
160 2.375 0.344 3283 3283 3283 3047 2831
3" 40 3.500 0.216 1301 1301 1301 1208 1122
80 3.500 0.300 1844 1844 1844 1712 1590
160 3.500 0.438 2787 2787 2787 2587 2403
4" 40 4.500 0.237 1102 1102 1102 1023 950
80 4.500 0.337 1596 1596 1596 1482 1377
160 4.500 0.531 2611 2611 2611 2424 2552
5" 40 5.563 0.258 965 965 965 896 832
80 5.563 0.375 1428 1428 1428 1325 1231
160 5.563 0.625 2474 2474 2474 2296 2133
6" 40 6.625 0.280 877 877 877 814 756
80 6.625 0.432 1379 1379 1379 1280 1189
160 6.625 0.719 2382 2382 2382 2211 2054
8" 40 8.625 0.322 771 771 771 716 665
80 8.625 0.500 1218 1218 1218 1131 1050
160 8.625 0.906 2298 2298 2298 2133 1982
10" 40 10.750 0.365 699 699 699 649 603
80 10.750 0.594 1159 1159 1159 1075 999
160 10.750 1.125 2289 2289 2289 2124 1974


AVAILABLE STOCK OF Alloy Steel F21 FORGED FITTING :


Preview Products UNS DIN
Alloy Steel F21 Forged Elbow Alloy Steel F21 Forged Elbow UNS K41545 Forged Elbow 1.7380 Forged Elbow
Alloy Steel F21 Forged Tee Alloy Steel F21 Forged Tee UNS K41545 Forged Tee 1.7380 Forged Tee
Alloy Steel F21 Forged Cross Alloy Steel F21 Forged Cross UNS K41545 Forged Cross 1.7380 Forged Cross
Alloy Steel F21 Forged Coupling Alloy Steel F21 Forged Coupling UNS K41545 Forged Coupling 1.7380 Forged Coupling
Alloy Steel F21 Union Alloy Steel F21 Forged Union UNS K41545 Forged Union 1.7380 Forged Union


Equivalent Grades of Alloy Steel F21 FORGED FITTING :


STANDARD UNS WERKSTOFF NR. DIN
Alloy Steel F21 K41545 1.7380 10CRM0910


Chemical Composition of Alloy Steel F21 FORGED FITTING :


Grade C Mn Si P S Cr Mo
Alloy Steel F21  0.15 max  0.3-0.6 0.5  0.03 0.03 4-6 0.44-0.65


Mechanical Properties of Alloy Steel F21 FORGED FITTING :


Grade Tensile Strength (Mpa) Yield Strength (Mpa) Elongation %
A182 F21 275 485 20


Alloy Steel F21 Price Per Kg (As per demand and manufacturer):


Alloy Steel F21 Fittings type Alloy Steel F21 Fittings Price in India Alloy Steel F21 Fittings Price in Saudi Riyal Alloy Steel F21 Fittings Price in UAE Dirham
Alloy Steel F21 REDUCER- ECCENTRIC BUTTWELD, ASME B16.9 price per kg INR 5,575 SAR 293.57 Saudi Riyal AED 295.31 UAE Dirham
Alloy Steel F21 Fittings price per kg INR 5,574 SAR 293.52 Saudi Riyal AED 295.26 UAE Dirham
Alloy Steel F21 ELBOW-45 DEGREE BUTTWELD, ASME B16.9 price per kg INR 5,545 SAR 292.00 Saudi Riyal AED 293.72 UAE Dirham
Alloy Steel F21 ELBOW-90 DEGREE BUTTWELD, ASME B16.9 price per kg INR 5,582 SAR 293.94 Saudi Riyal AED 295.68 UAE Dirham


author
Alloy Steel F21 FORGED FITTING

Request the latest Alloy Steel F21 FORGED FITTING Price List. Please Call +91 98691 88888 or Send an Email to sales@duplexsteel.org for Alloy Steel F21, 1.7380 FORGED FITTING Ready stock information and updated price list.

Testings (Destructive, Non Destructive):

  • Positive Material Identification - PMI Testing
  • Chemical Analysis - Spectro Analysis
  • Mechanical Testing Such as Tensile, Elongation, Reduction of Area
  • Micro Test
  • Macro Test
  • Hardness Test
  • Pitting Resistance Test
  • Intergranular Corrosion (IGC) Test
  • Flaring Test
  • Flattening Test
  • Hydrostatic Test
  • Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
  • Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
  • Radiography Test
  • Dye Penetrant Test (DP Test)
  • Ultra Sonic Test (UT)
  • Eddy Current Testing
  • Impact Test
  • Bend Test

Packing :

We DUPLEX STEEL & ENGINEERING Ensure the best quality of Packing, because its play important role especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put extraordinary concern regarding packaging.

We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as:--

  • Boxes and Crates
  • Shrink-wrapped
  • Carton boxes
  • Wooden pallets
  • Wooden boxes
  • Wooden crates

APPLICATION :

  • Chemical tanks
  • Pulp & Paper Industries
  • Petrochemical Industries
  • Power Generation Industries
  • Oil & Gas Industries
  • Desalination
  • Architecture and Construction
  • Food Processing Equipment
  • Biofuels plant
  • Cargo tanks for ships and trucks
  • Chemical Industries Pumps, fans, centrifuges, sulphur melting coils,
  • Digester in sulphate and sulfite plants, blow tanks, blow lines
